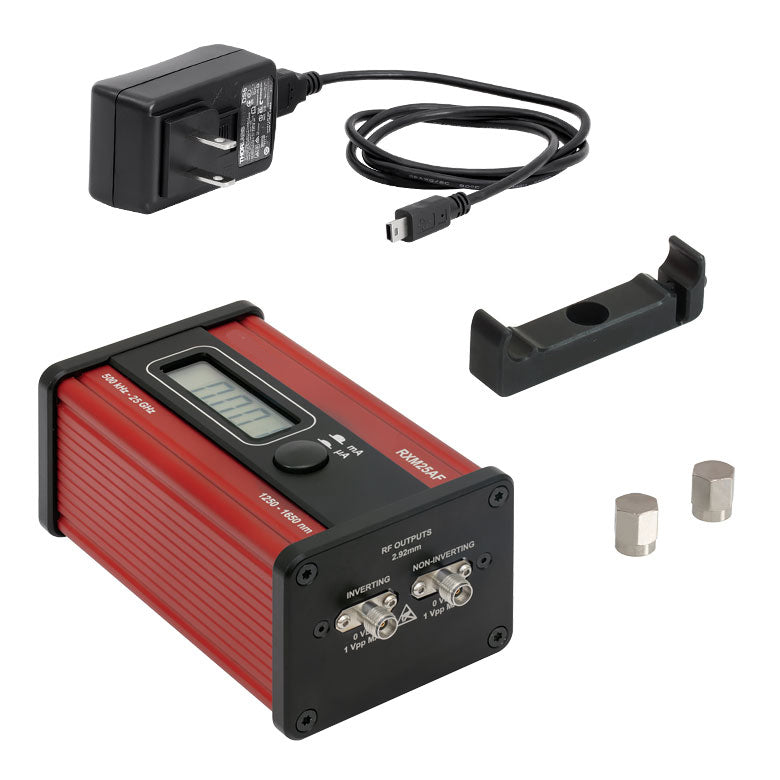

TH-RXM25AF - Single Mode Ultrafast Receiver, 1250 - 1650 nm, 500 kHz - 25 GHz, FC/PC
TH-RXM25AF - Single Mode Ultrafast Receiver, 1250 - 1650 nm, 500 kHz - 25 GHz, FC/PC
TH-RXM25AF - Single Mode Ultrafast Receiver, 1250 - 1650 nm, 500 kHz - 25 GHz, FC/PC
TH-RXM25AF - Single Mode Ultrafast Receiver, 1250 - 1650 nm, 500 kHz - 25 GHz, FC/PC
TH-RXM25AF - Single Mode Ultrafast Receiver, 1250 - 1650 nm, 500 kHz - 25 GHz, FC/PC
TH-RXM25AF - Single Mode Ultrafast Receiver, 1250 - 1650 nm, 500 kHz - 25 GHz, FC/PC
Roll over image to zoom in Click on image to zoom
TH-RXM25AF - Single Mode Ultrafast Receiver, 1250 - 1650 nm, 500 kHz - 25 GHz, FC/PCTH-RXM25AF - Single Mode Ultrafast Receiver, 1250 - 1650 nm, 500 kHz - 25 GHz, FC/PCTH-RXM25AF - Single Mode Ultrafast Receiver, 1250 - 1650 nm, 500 kHz - 25 GHz, FC/PCTH-RXM25AF - Single Mode Ultrafast Receiver, 1250 - 1650 nm, 500 kHz - 25 GHz, FC/PCTH-RXM25AF - Single Mode Ultrafast Receiver, 1250 - 1650 nm, 500 kHz - 25 GHz, FC/PCTH-RXM25AF - Single Mode Ultrafast Receiver, 1250 - 1650 nm, 500 kHz - 25 GHz, FC/PC

TH-RXM25AF - Single Mode Ultrafast Receiver, 1250 - 1650 nm, 500 kHz - 25 GHz, FC/PC

Fosco ConnectSKU: THRXM25AF
Price:
$ 6,880.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

TH-RXM25AF - Single Mode Ultrafast Receiver, 1250 - 1650 nm, 500 kHz - 25 GHz, FC/PC

Fiber Type Ø9 µm SMF-28

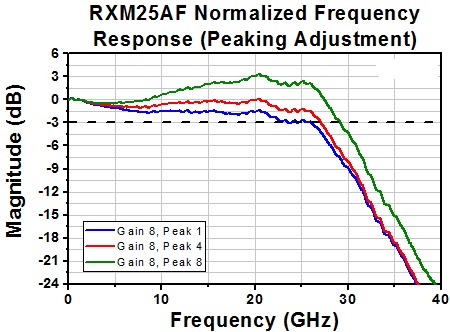

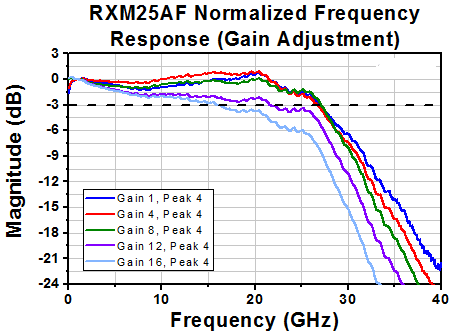

Bandwidth 500 kHz - 25 GHz

Wavelength Range 1250 - 1650 nm

Responsivity 0.75 A/W

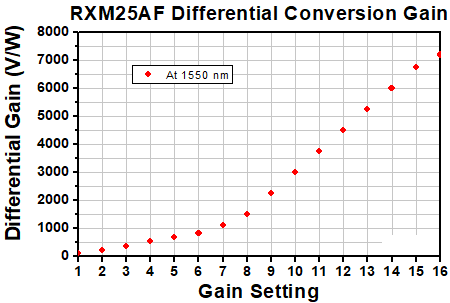

Conversion Gain 110-7200 V/W

Optical Return Loss (Max) -28 dB

Noise-Equivalent Power (NEP) 15 pW/√Hz

Current Monitor Output 200 mV/mA

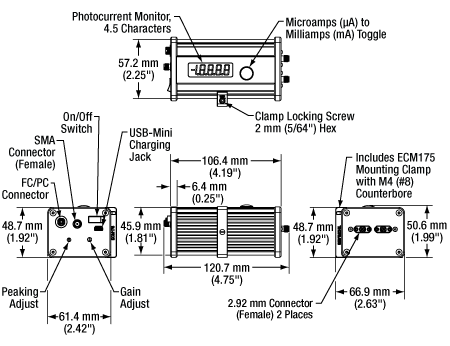

Product Drawing
