TH-S175C - Microscope Slide Thermal Power Sensor, 300 nm - 10.6 µm, 2 W
TH-S175C - Microscope Slide Thermal Power Sensor, 300 nm - 10.6 µm, 2 W
- Wavelength Range: 300 nm - 10.6 µm
- Sensitive to Optical Powers from 100 µW to 2 W
- Designed to Measure Optical Power in the Sample Plane of a Microscope
- Thermal Sensor with 18 mm x 18 mm Active Area
- 76.0 mm x 25.2 mm Footprint Matches Standard Microscope Slides
- Information Stored in Connector
- Sensor Data
- NIST- and PTB-Traceable Calibration Data
-

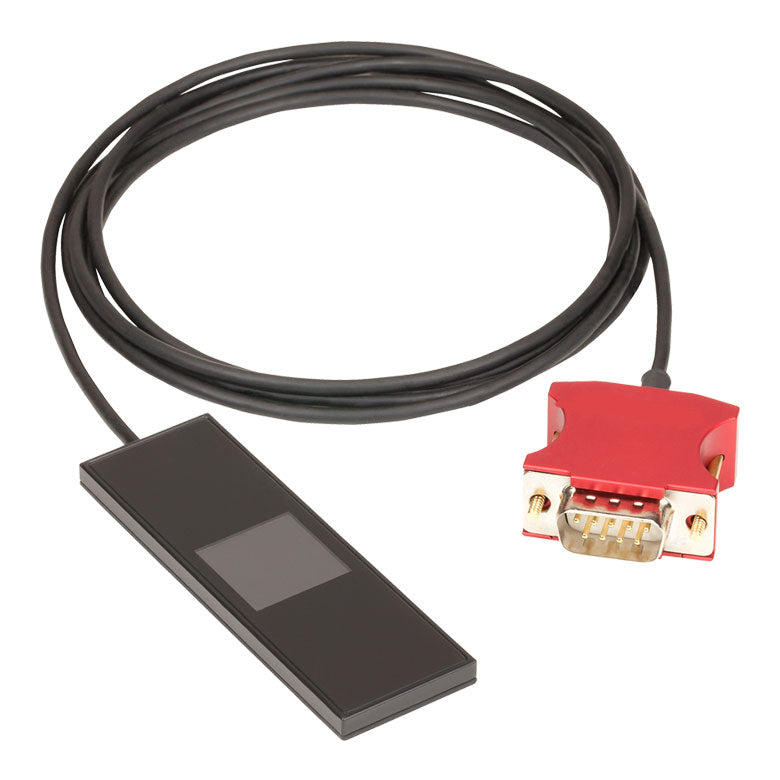

Item # THS175C Sensor Image
(Click Image to Enlarge)
Active Detector Area 18 mm x 18 mm Wavelength Range 0.3 - 10.6 µm Power Range 100 µW - 2 W Detector Type Thermal Surface Absorber (Thermopile) Linearity ±0.5% Resolution 10 µW Measurement Uncertaintyc ±3% @ 1064 nm;
±5% @ 300 nm - 10.6 µmResponse Time 3 s
(<2 s from 0 to 90%)Housing Dimensions 76 mm x 25.2 mm x 4.8 mm
(2.99" x 0.99" x 0.19")Cable Length 1.5 m Housing Features Integrated Glass Cover
Engraved Laser Target on BackPost Mounting N/A Cage Mounting N/A Aperture Thread N/A
