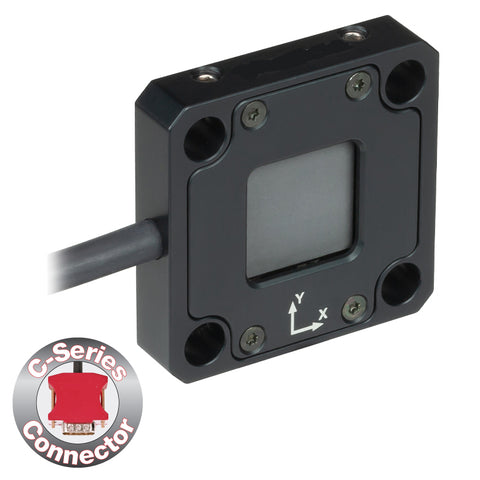

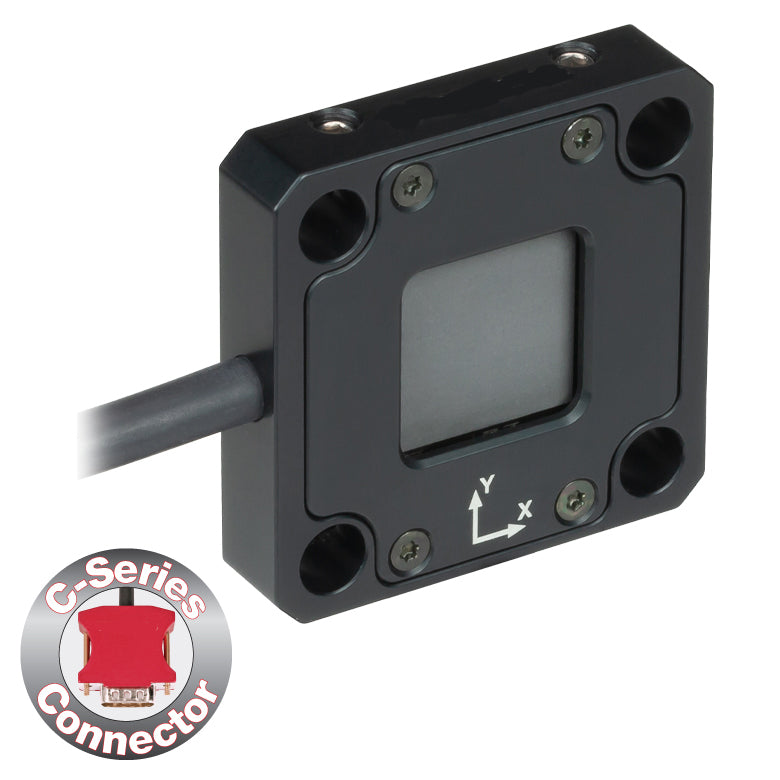

TH-S440C - Thermal Power Sensor Head, Position Sensing, 0.19 - 20 µm, 5 W, 17 mm x 17 mm

Fosco Connect Part No.: THS440C

  • $ 1,925.00 or



TH-S440C - Thermal Power Sensor Head, Position Sensing, 0.19 - 20 µm, 5 W, 17 mm x 17 mm

Product Drawing

Wavelength Range 190 nm - 20 µm
Optical Power Range 0.5 mW - 5 W
Input Aperture Size 17 mm x 17 mm
Max Optical Power Density 1.5 kW/cm2
Detector Type Four Thermopiles in Quadrant Configuration
Linearity ±1%
Resolutionb 50 µW
Measurement Uncertaintyc ±5% at 1064 nm;
±7% for 250 nm - 17 µm
Position Resolution 5 µm
Position Accuracyd 50 µm (Ø1 mm Circle)
200 µm (Ø6 mm Circle)
Position Repeatabilityd 15 µm (Ø1 mm Circle)
100 µm (Ø6 mm Circle)
Response Timee <1.1 s
Cooling Convection (Passive)
Housing Dimensions
(Without Adapter)
40.6 mm x 40.6 mm x 8.9 mm
(1.60" x 1.60" x 0.35")
Temperature Sensor
(In Sensor Head)
NTC Thermistor
Cable Length 1.5 m
Post Mounting One 8-32 / M4 Universal Tap
30 mm Cage Mounting Four Ø6 mm Through Holes
Aperture Threads -
Accessories -
