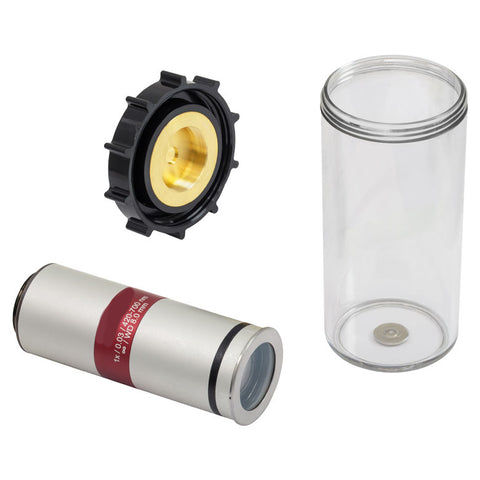

TH-TL1X-SAP - 1X Super Apochromatic Microscope Objective, 0.03 NA, 8.0 mm WD
TH-TL1X-SAP - 1X Super Apochromatic Microscope Objective, 0.03 NA, 8.0 mm WD
Wavelength Range 420 - 700 nm
Magnification When Used with a 200 mm Focal Length Tube Lens 1X
Working Distance With the Wave Plate Attached 8.0mm
Effective Focal Length 200 mm
Numerical Aperture 0.03
Entrance Pupil Diameter 12 mm
Resolution 11.2 µm
Optical Field Number 22
Parfocal Length 95 mm
Cover Glass Thickness 0 - 5.0 mm
- Infinity-Corrected Super Apochromatic Design
- Ideal for Imaging or Focusing Laser Light
- M25 x 0.75 or M32 x 0.75 Threading
- Designed for a Tube Lens Focal Length of 200 mm
