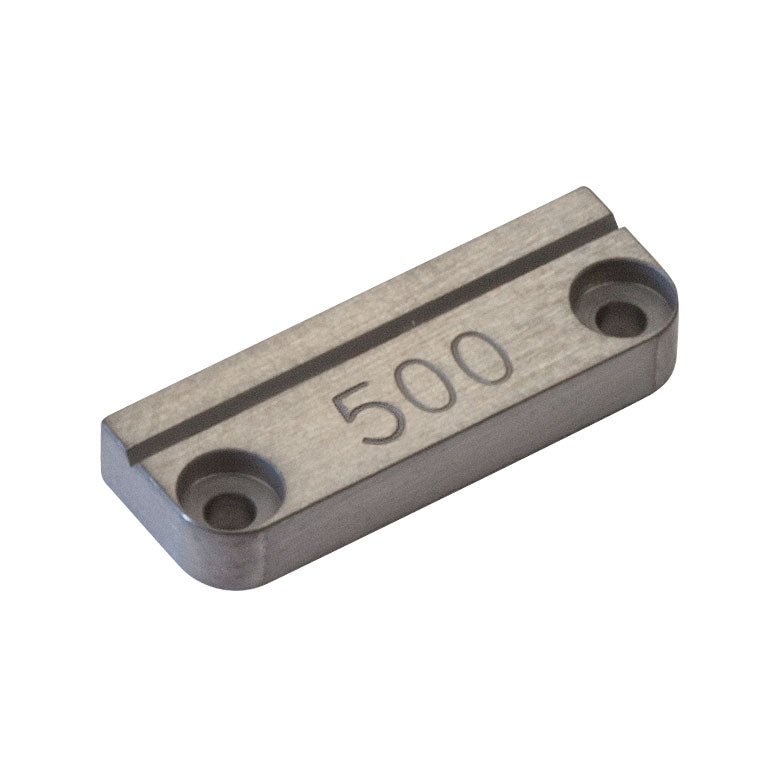

TH-VHN500 - V-Groove Insert for FHBR1, Ø450 µm - Ø550 µm Coating
TH-VHN500 - V-Groove Insert for FHBR1, Ø450 µm - Ø550 µm Coating
- V-Groove Inserts Align Fibers within the Fiber Holding Blocks Included with the Workstation Base Unit
- Support Buffer or Coating Diameters Ranging from 90 µm to 990 µm
- Two Required: One Each for Left and Right Holding Blocks
| Compatible Fiber Buffer/Coating Diameters | |||
|---|---|---|---|
| Item # | Nominal Diameter | Minimum Diameter | Maximum Diameter |
| THVHN100 | 100 µm | 90 µm | 110 µm |
| THVHN125 | 125 µm | 113 µm | 137 µm |
| THVHN135 | 135 µm | 130 µm | 145 µm |
| THVHN160 | 160 µm | 144 µm | 176 µm |
| THVHN200 | 200 µm | 180 µm | 220 µm |
| THVHN250 | 250 µm | 225 µm | 275 µm |
| THVHN300 | 300 µm | 270 µm | 330 µm |
| THVHN400 | 400 µm | 360 µm | 440 µm |
| THVHN500 | 500 µm | 450 µm | 550 µm |
| THVHN600 | 600 µm | 540 µm | 660 µm |
| THVHN700 | 700 µm | 630 µm | 770 µm |
| THVHN800 | 800 µm | 720 µm | 880 µm |
| THVHN900 | 900 µm | 810 µm | 990 µm |
