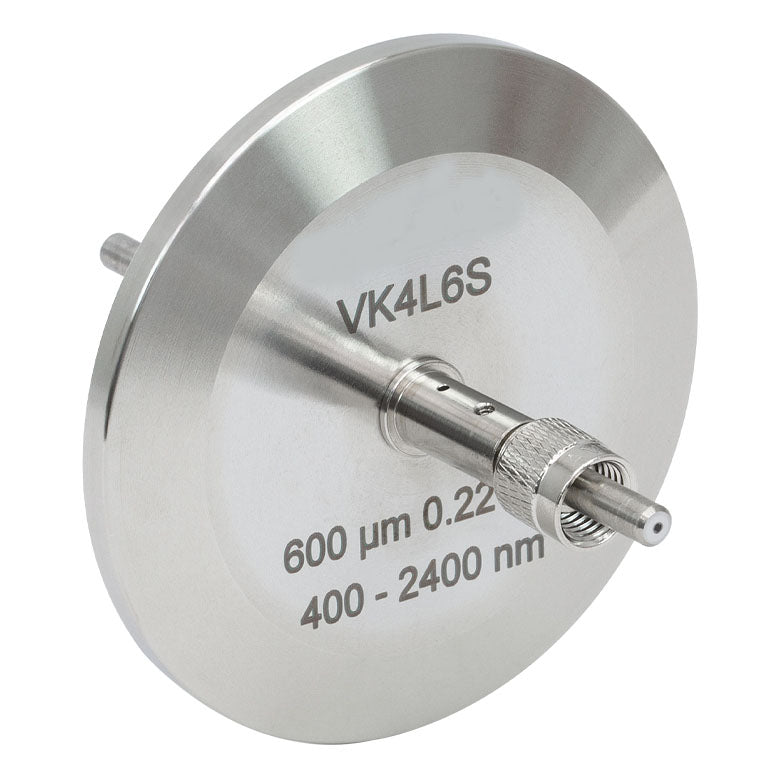

TH-VK4L6S - Fiber Feedthrough for KF40 Flange, Low OH, Ø600 µm Core, 400 - 2400 nm, 0.22 NA, SMA
TH-VK4L6S - Fiber Feedthrough for KF40 Flange, Low OH, Ø600 µm Core, 400 - 2400 nm, 0.22 NA, SMA
- Construction Enables use at Vacuum Pressures Down to 1 x 10-8 Torr
- Mates to TH-KF40 (Ø2.17") Flanges

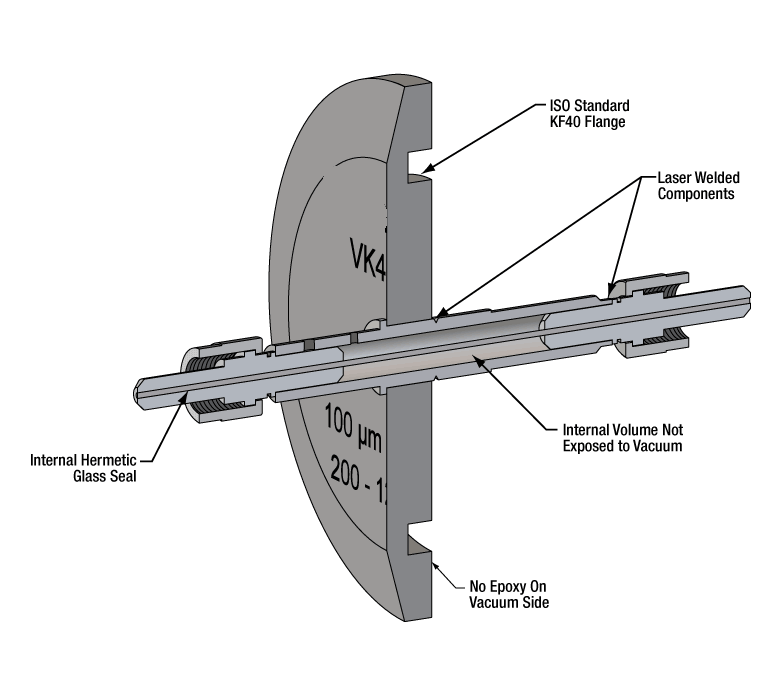

- Hermetically-Sealed Fiber Tip Limits Virtual Leaks
- 304 Stainless Steel Construction for High Durability and Low Outgassing
- Laser Welded Body on High- and Low-OH Fiber Feedthroughs
- High-OH and Low-OH Fiber Feedthroughs Adhesive-Free on Vacuum Side
- TH-KF40 Flange-Centering O-Ring Carrier and Wing Nut Clamp
