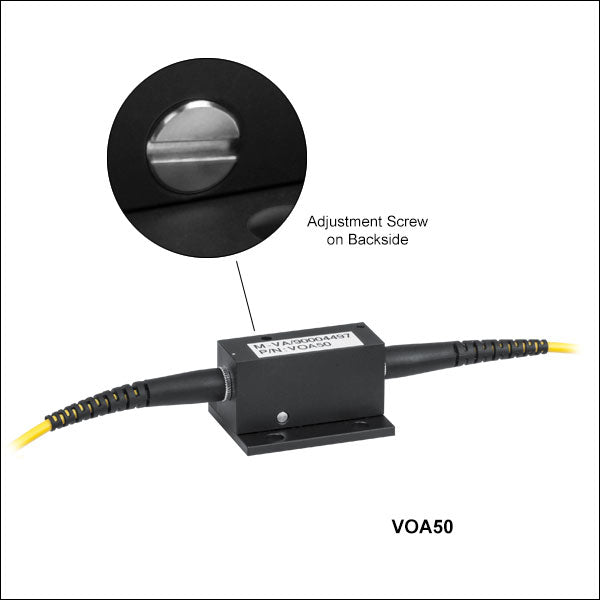

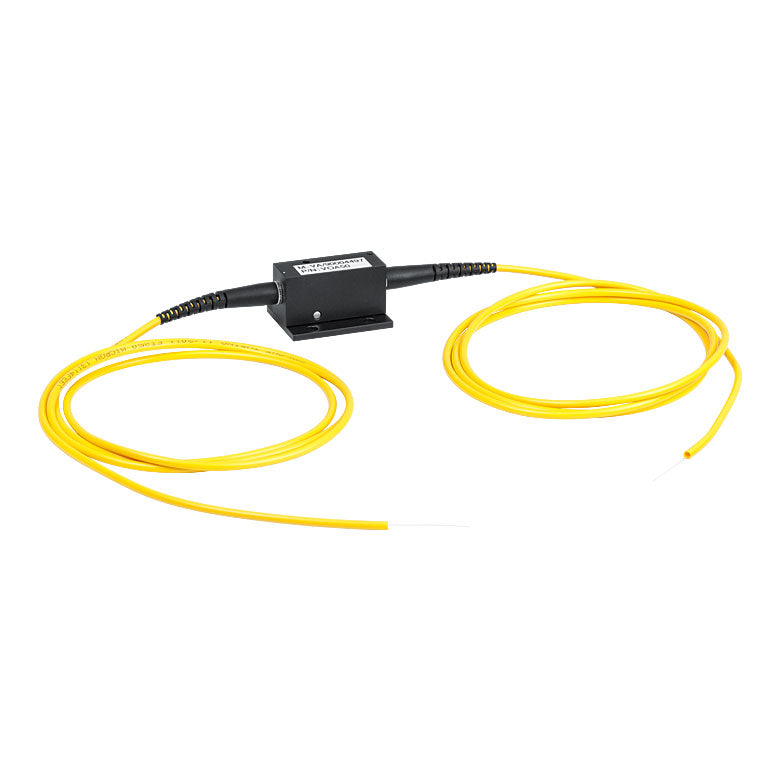

TH-VOA50 - SM Variable Attenuator, 1310/1550 nm, 50 dB, In-Line, No Connectors
TH-VOA50 - SM Variable Attenuator, 1310/1550 nm, 50 dB, In-Line, No Connectors
| tem # | TH-VOA50 | TH-VOA50-FC | TH-VOA50-APC |
|---|---|---|---|
| Termination | None | FC/PC | FC/APC |
| Operating Wavelengths | 1310 ± 20 nm / 1550 ± 20 nm | ||
| Attenuation Range | 1.5 - 50 dB | ||
| Attenuation Resolution | 0.1 dB (Typical) | ||
| % Transmission Range | 0.001 - 70.8% | ||
| Insertion Loss | ≤1.5 dB | ||
| Return Loss | >55 dB | ||
| PDL | <0.2 dB | ||
| Max Power | 300 mW | ||
| Operating Temperature | 0 to 60 °C | ||
| Storage Temperature | -40 to 85 °C | ||
| Fiberb | SMF-28e | ||
| Dimensions | 38 mm x 30 mm x 19 mm | ||
