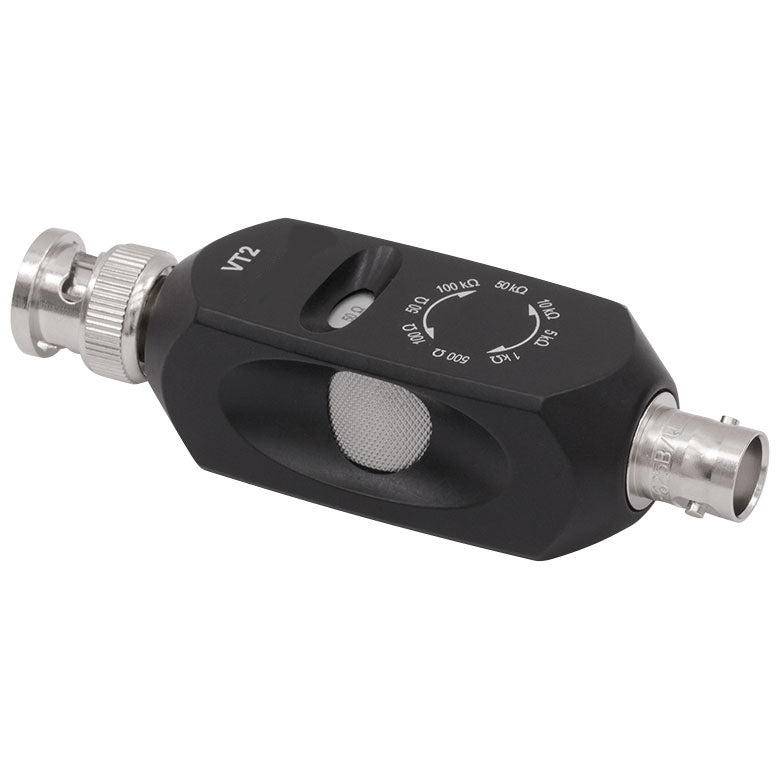

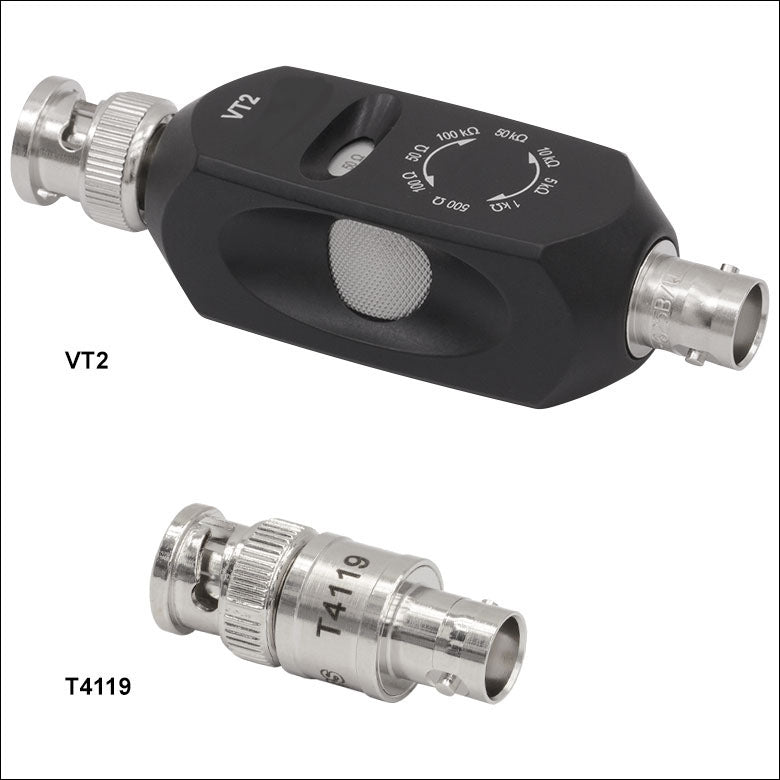

TH-VT2 - Variable Resistance BNC Feed-Through Terminator, 50 Ω to 100 kΩ
TH-VT2 - Variable Resistance BNC Feed-Through Terminator, 50 Ω to 100 kΩ
Roll over image to zoom in Click on image to zoom
TH-VT2 - Variable Resistance BNC Feed-Through Terminator, 50 Ω to 100 kΩTH-VT2 - Variable Resistance BNC Feed-Through Terminator, 50 Ω to 100 kΩ

TH-VT2 - Variable Resistance BNC Feed-Through Terminator, 50 Ω to 100 kΩ

Fosco ConnectSKU: TH-VT2
Price:
$ 385.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

TH-VT2 - Variable Resistance BNC Feed-Through Terminator, 50 Ω to 100 kΩ

Product Specification Sheet

VT2 Specifications
Nominal
Value		 Max Power
Ratinga 		Max DC
Voltage		 Value with
1 MΩ in Parallel		 Value with
100 MΩ in Parallel
50 Ω 1 W 5 V 50 Ω 50 Ω
100 Ω 1 W 8 V 100 Ω 100 Ω
500 Ω 0.25 W 8 V 500 Ω 500 Ω
1 kΩ 0.25 W 12 V 1 kΩ 1 kΩ
5 kΩ 0.25 W 25 V 4.98 kΩ 4.99 kΩ
10 kΩ 0.125 W 25 V 9.90 kΩ 9.99 kΩ
50 kΩ 0.125 W 25 V 47.72 kΩ 49.75 kΩ
100 kΩ 0.125 W 25 V 90.91 kΩ 99.00 kΩ
General VT2 Specifications
Resistance Tolerance ±5%
Storage Temperature -30 to 60 °C
Operating Temperature 10 to 40 ­°C
