THL-PTRRRM - Replacement Injector for Vytran Recoaters with 50 mm Manual Mold Assemblies and Manual Injectors
THL-PTRRRM - Replacement Injector for Vytran Recoaters with 50 mm Manual Mold Assemblies and Manual Injectors

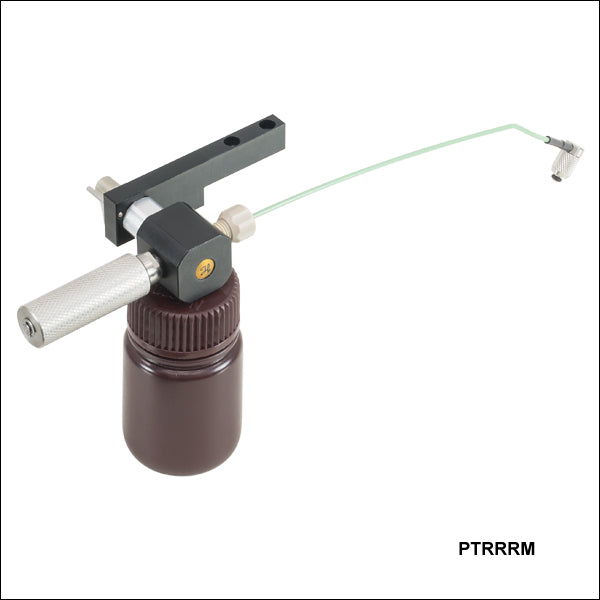

- Replacement Manual Injectors for Dispensing Recoat Material into the Mold
- Accept PC373 and AB950200 Recoat Materials
- Replacement Injection Tubes for Recoaters with Manual Injectors
- Replacement Syringe Barrel for Manual Injectors
These manual injectors and injection tubes are available as replacement parts for Vytran Fiber Recoaters with Manual Injectors; compatible systems are listed to the right. We also offer a replacement syringe barrel.
Each injector can be mounted to compatible fiber recoaters via two 4-40, 3/32" hex screws on the recoater housing (see photo to the right). To connect the injector to the recoater mold, tighten the connector at the end of the green plastic tubing, then loosen by a 1/4 turn to allow for rotation.
| Item # | Component Description |
Compatible Recoaters | |
|---|---|---|---|
| 50 mm Recoaters | 100 mm Recoaters | ||
| PTRRRM |
Manual Injector | PTR303B, PTR306B, PTR307B, PTR406B, PTR407B |
- |
| PTRRRML |
- | PTR304B, PTR404B | |
| RRMTA |
Injection Tube | PTR303B, PTR306B, PTR307B, PTR406B, PTR407B |
- |
| RRMTAL | - | PTR304B, PTR404B | |
| RRMS | Syringe Barrel | PTR303B, PTR306B, PTR307B, PTR406B, PTR407B |
PTR304B, PTR404B |
