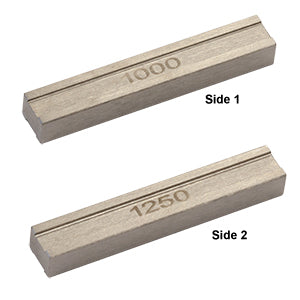

THL-VHA10 - Dual-Sided Fiber Holder Top Insert, Ø812 µm - Ø1770 µm
THL-VHA10 - Dual-Sided Fiber Holder Top Insert, Ø812 µm - Ø1770 µm
- Two are Required to use the Large-Diameter Fiber Cleavers
- Flat, Recessed Surface Clamps the Fiber Against the V-Groove in the Bottom Insert (Sold Below)
- Clamp Fiber Outer Diameters from 57 µm to 3.198 mm When Used with Bottom Inserts
- Compatible with Other Vytran Systems
|
Fiber Holder Top Insertsa
|
||
|---|---|---|
| Item # | Side 1 Min/Max Accepted Diameter |
Side 2 Min/Max Accepted Diameter |
| VHA00 | 57 µm / 759 µmb | 275 µm / 970 µm |

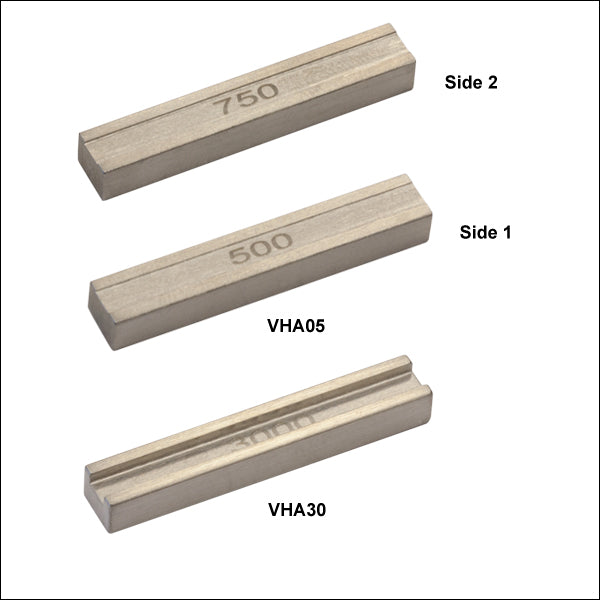

| VHA05 | 410 µm / 1008 µm | 560 µm / 1269 µm |
| VHA10 | 812 µm / 1515 µm | 1036 µm / 1770 µm |
| VHA15 | 1288 µm / 2022 µm | 1534 µm / 2268 µm |
| VHA20 | 1772 µm / 2505 µm | 2032 µm / 2944 µm |
| VHA25 | 2278 µm / 3029 µm | N/A |
| VHA30 | 2609 µm / 3198 µm | N/A |
