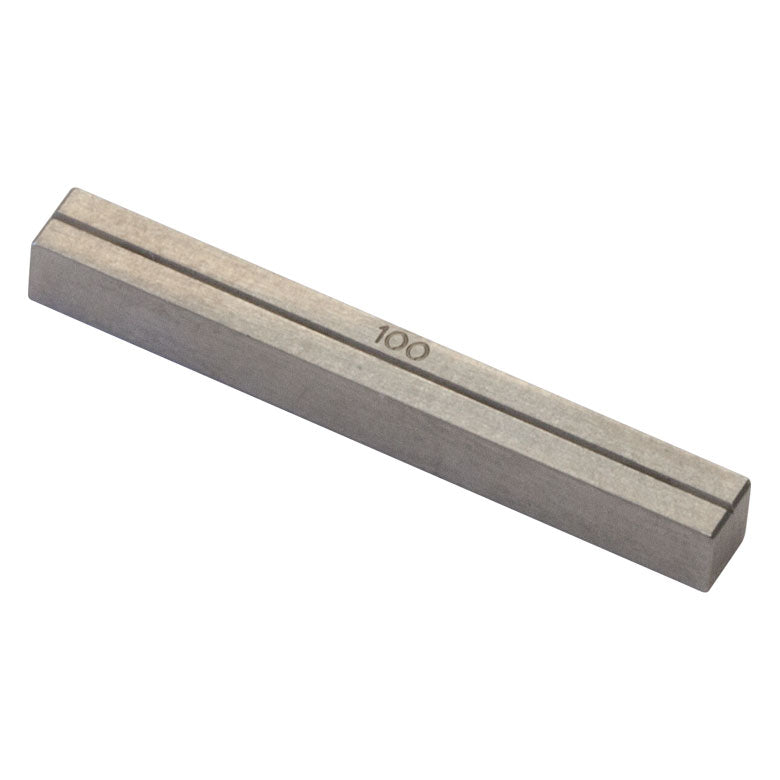

THL-VHH100 - Bottom V-Groove Insert for Fiber Holding Blocks, Ø90 µm - Ø110 µm Coating
THL-VHH100 - Bottom V-Groove Insert for Fiber Holding Blocks, Ø90 µm - Ø110 µm Coating
- V-Groove Inserts Align Fibers within the Fiber Holding Blocks Included with the Workstation Base Unit
- Support Buffer or Coating Diameters Ranging from 90 µm to 990 µm (See Table to the Right)
- Two Required: One Each for Left and Right Holding Blocks
| Compatible Fiber Buffer/Coating Diameters | |||
|---|---|---|---|
| Item # | Nominal Diameter | Minimum Diameter | Maximum Diameter |
| THL-VHH100 | 100 µm | 90 µm | 110 µm |
| THL-VHH125 | 125 µm | 113 µm | 137 µm |
| THL-VHH160 | 160 µm | 144 µm | 176 µm |
| THL-VHH250 | 250 µm | 225 µm | 275 µm |
| THL-VHH300 | 300 µm | 250 µm | 350 µm |
| THL-VHH400 | 400 µm | 350 µm | 450 µm |
| THL-VHH500 | 500 µm | 450 µm | 550 µm |
| THL-VHH600 | 600 µm | 540 µm | 660 µm |
| THL-VHH900S | 900 µm | 810 µm | 990 µm |
