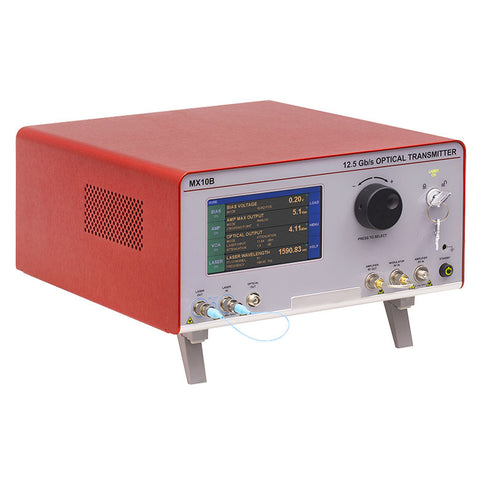

THMX10B-LB - 12.5 Gb/s Max Digital Reference Transmitter, L-Band Laser, Limiting Amplifier
THMX10B-LB - 12.5 Gb/s Max Digital Reference Transmitter, L-Band Laser, Limiting Amplifier
- For Applications up to 40 Gb/s
- User-Adjustable RF Amplifier Output Swing
- Multiple Integrated Internal Laser Options*
- C-Band Laser Tunable on ITU 50 GHz Grid
- L-Band Laser Tunable on ITU 50 GHz Grid
- 1310 nm Fixed-Wavelength Laser
- The THMX40B series digital transmitters support bit rates up to 40 Gb/s and have a direct internal connection from the amplifier to the modulator.
Key System Specificationsa | ||
---|---|---|
Item # | THMX40B-LB | |
Bit Rate (Maximum) | 40 Gb/s | |
Internal Laser Typeb | L-Band, Tunable | |
Internal Laser Wavelengthb | 1570.0 - 1608.8 nm | |
RF Amplifier Gain | 30 dB | |
Small Signal Bandwidth | 20 GHz |
