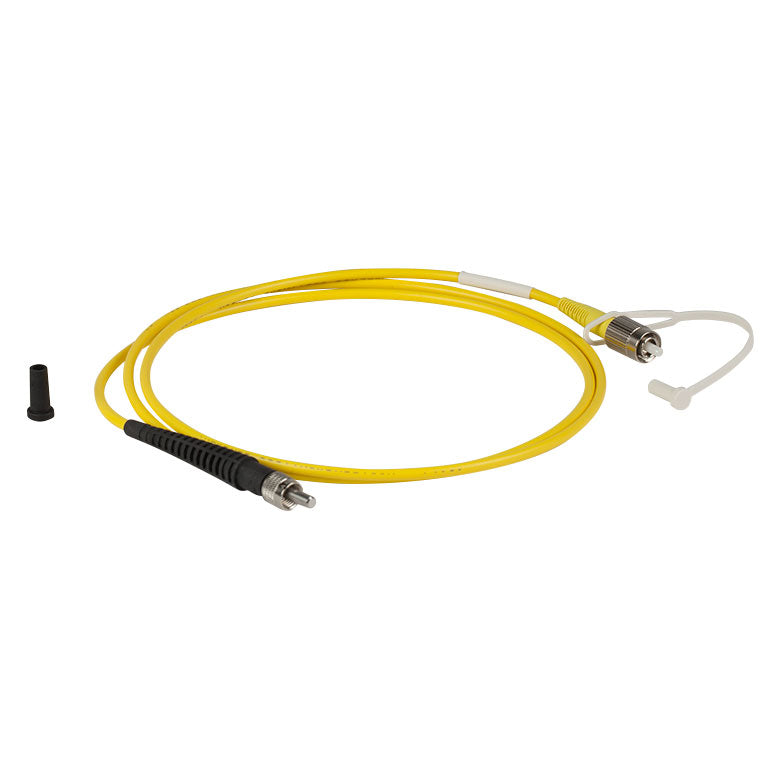

THP2-2000-PCSMA-1 - Single Mode Patch Cable, 1700 - 2300 nm, FC/PC to SMA, Ø3 mm Jacket, 1 m Long

Product Drawing

Fiber Type SM2000

Operating Wavelength 1700 - 2300 nm

Cutoff Wavelength 1750 ± 50 nm

Mode Field Diameter 13 ± 1 µm @ 1996 nm

Cladding Diameter 125 ± 1 µm

Typical Attenuation^a  20 dB/km (0.02 dB/m) @ 1.9 µm^b   250 dB/km (0.25 dB/m) @ 2.3 µm^b

NA  0.12 ± 0.01

Furcation Tubing Ø3 mm Yellow PVC
