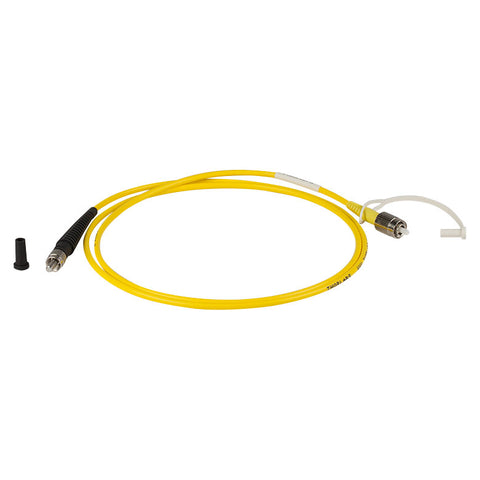

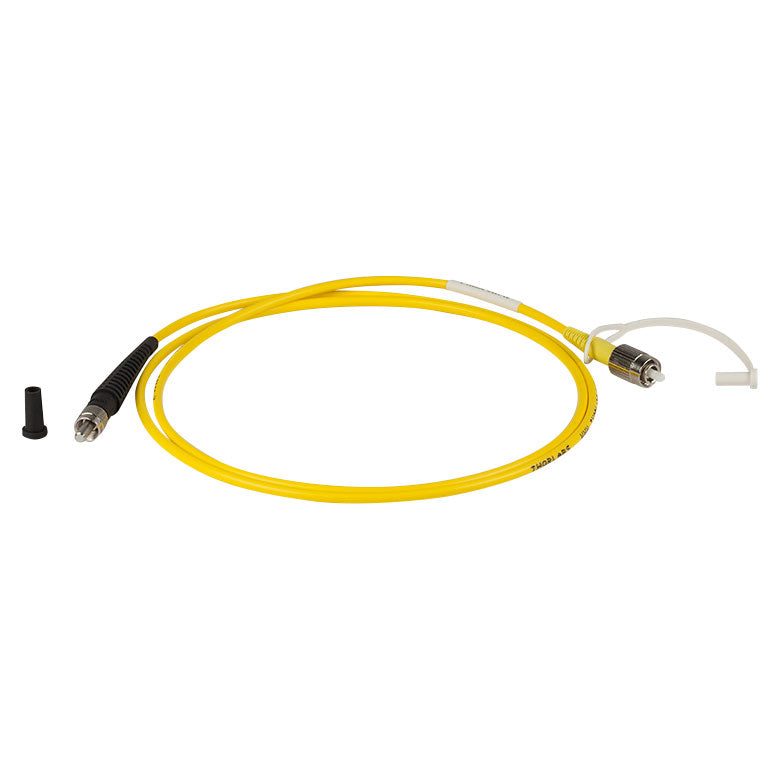

THP2-630A-PCSMA-1 - Single Mode Patch Cable, 633 - 780 nm, FC/PC to SMA, Ø3 mm Jacket, 1 m Long

Product Drawing

Fiber Type 780HP SM600

Operating Wavelength  633 - 780 nm^a

Cutoff Wavelength 500 - 600 nm

Mode Field Diameter 3.6 - 5.3 µm @ 633 nm

Cladding Diameter 125 ± 1.0 µm

Max Attenuation^a  ≤15 dB/km

NA  0.10 - 0.14

Furcation Tubing Ø3 mm Yellow PVC
