Thunderbolt Single Mode OTDR Kit One-Click, (2) SC/APC Pulse Boxes

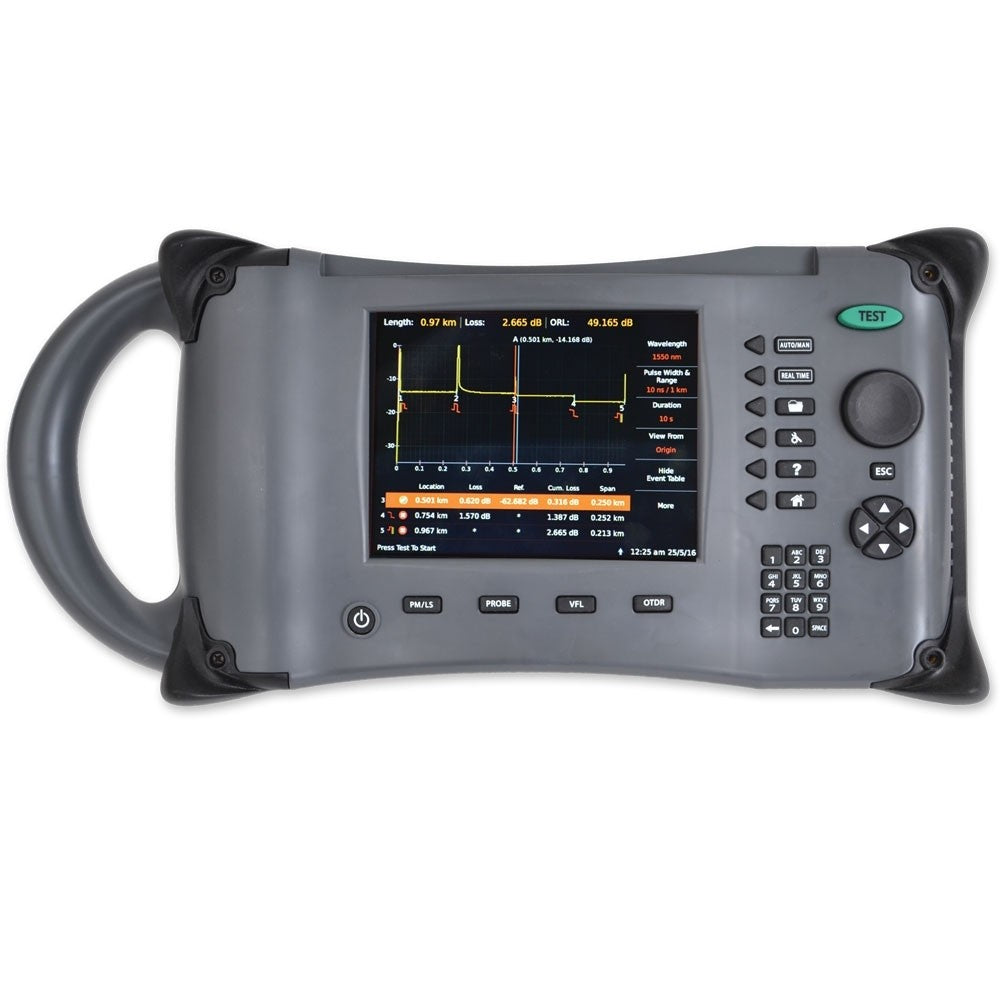

The Thunder Bolt OTDR with 7 in 1 critical fiber optic tests incorporates a full-functioning Optical Time Domain Reflectometer (OTDR) designed for ease-of-use in a wide range of testing applications and environments. The unique, integrated handle on the side of the tester provides the technician with a firm grasp during handling and fiber testing rubber corner bumpers protecting it from shock.

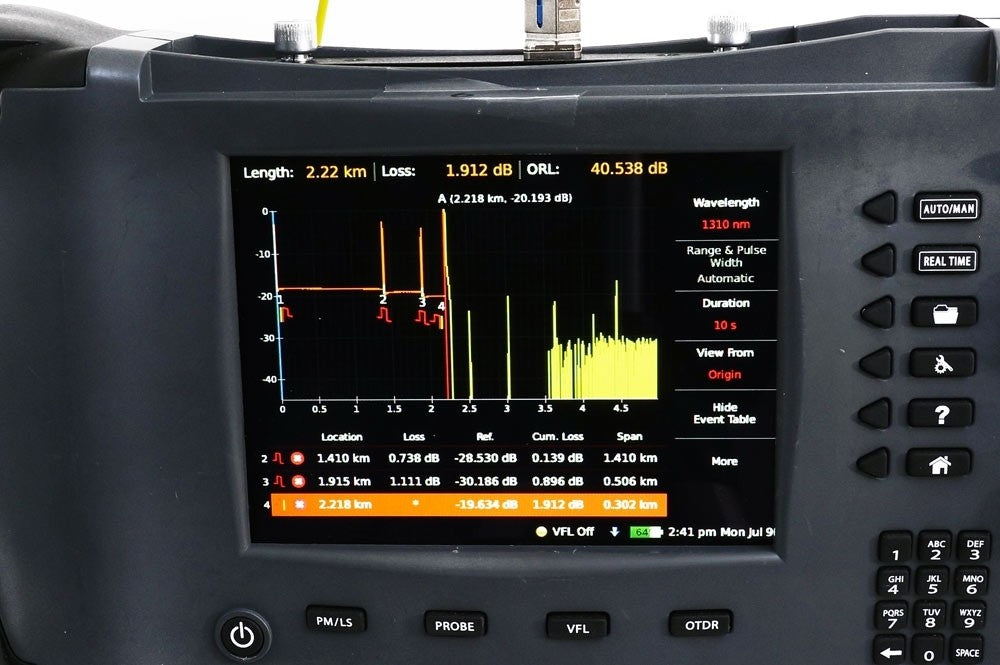

The Thunder Bolt has a intuitive Graphical User Interface (GUI) and large, high-visibility command keys that make it easy to select between optical testing features and parameter settings. The Thunder Bolt has the ability to accommodate different connector styles, which provides flexibility when moving from one interconnect location to another (Remember to use an OTDR launch box between the connector under test and the OTDR adapter test port).
The Thunder Bolt provides outstanding value in optical testing performance. Additional features include Gigabit Analyzer, Link Checker, Power Meter, Reporting Software, Visual Fault Locator and Connector Inspection Option. The unit can quickly and accurately verify break, fiber end or highly reflective event such as a contaminated (dirty) connector endface. Made In The U.S.A.
Features
- 7 Critical Fiber Optic Tests
- OTDR
- Gigabit Analyzer
- End of Fiber Checker
- Power Meter
- Reporting Software
- Visual Fault Locator
- Connector Inspection Option
- 38dB Dynamic Range
- Singlemode
- Event Table and Auto Test Modes
- 6.5” Color LCD
- Quick Save Key
- Real time Test Mode
- Easy to Navigate File Folders
- 2 USB Ports
- Gigabit Ethernet Fiber Verification Testing
- Macro Bend Detection
- Trace Overlay
- On Board Power Meter
- Visual Fault Locator
