Overview

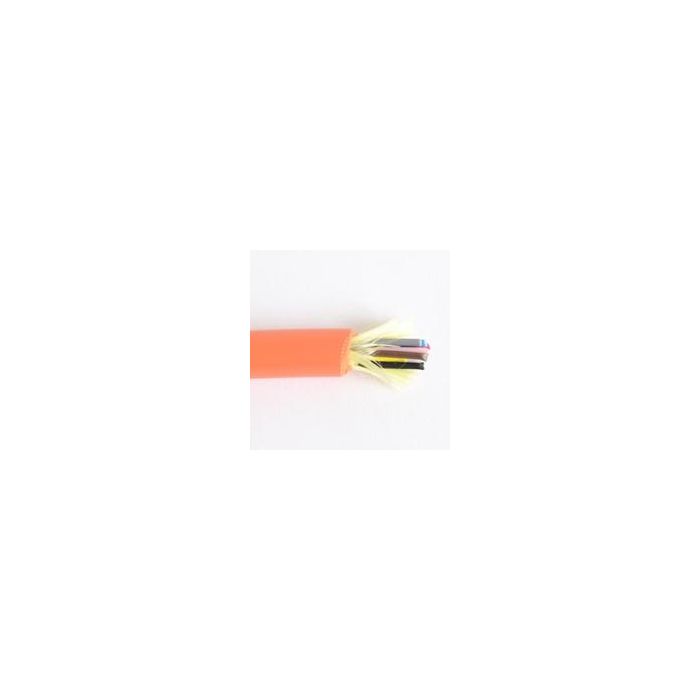

The TLC 12-fiber distribution cable is designed for reliable indoor backbone and horizontal networking applications. Featuring 62.5/125um multimode Infinicor300 fiber, this cable is constructed with 900um tight-buffered fibers that allow for direct termination, eliminating the need for breakout kits and simplifying field installations.
This cable is built for riser-rated environments, ensuring compliance with building safety standards for vertical cable runs. Its compact distribution-style design makes it an ideal choice for data centers, telecommunications closets, and office environments where efficient space management and quick, high-quality fiber termination are required.
Key Features
-
900um Tight Buffer
Facilitates direct termination of connectors and simplifies the splicing process by eliminating the need for complex breakout kits. -
Riser-Rated Jacket
Provides essential fire safety for vertical pathways and shafts within commercial and industrial buildings. -
Infinicor300 Multimode Fiber
Optimized for high-speed data transmission in short-to-medium distance enterprise network backbones. -
12-Fiber Count
Standardized fiber density suitable for trunk and distribution runs in structured cabling environments. -
Compact Distribution Design
Optimizes cable tray and conduit space, allowing for more efficient cable management in congested pathways. -
Simplified Termination
Tight-buffered fibers allow for direct field termination or pigtail splicing, reducing labor time and potential points of failure.
Applications
- Indoor network backbones
- Horizontal fiber distribution
- Data center trunking
- Building-wide telecommunications systems
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | 62.5/125um Multimode (Infinicor300) |
| Construction | 900um Tight Buffered |
| Jacket Rating | Riser |
| Jacket Color | Orange |
| Cable Style | Distribution |
Frequently Asked Questions
Does this cable require a breakout kit?
No, the 900um tight-buffered construction allows for direct termination of connectors without the need for additional breakout kits.
Can this cable be used in vertical shafts?
Yes, this is a riser-rated cable specifically designed for vertical cable runs in commercial environments.
What is the fiber type?
This cable uses 62.5/125um multimode Infinicor300 fiber.
Are other fiber counts available?
Yes, this cable series supports fiber counts ranging from 2 to 144.
What color is the cable jacket?
The outer jacket of this specific cable is orange.
