Overview

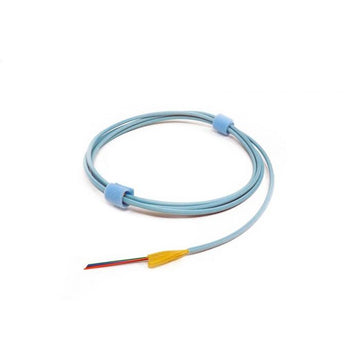

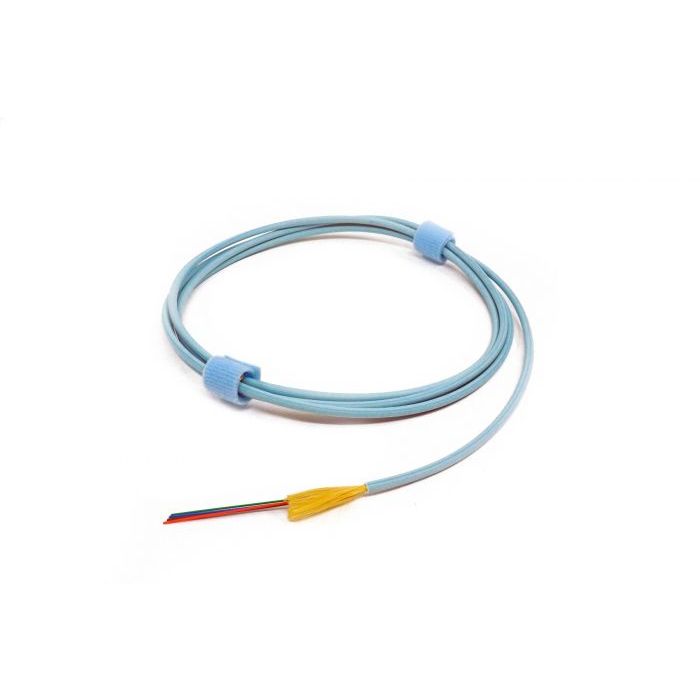

The TLC 12-fiber distribution cable is designed for high-density indoor networking applications. Featuring 50\\u03bcm OM4 multimode fiber, this cable is optimized for high-bandwidth data transmission and performance in local area networks, data centers, and premise installations.
The cable utilizes 900\\u03bcm tight-buffered fibers, which allow for direct termination to connectors without the need for additional breakout kits, significantly reducing installation time and labor costs. The riser-rated jacket provides the necessary fire safety rating for vertical pathway installations.
Key Features
-
Tight-Buffered Construction
Uses 900\\u03bcm fibers, allowing for direct connector termination and simplifying the installation process. -
OM4 Multimode Fiber
Supports high-speed data transmission distances required for 10GbE and beyond. -
Riser-Rated Jacket
Complies with vertical flame spread requirements for use in riser pathways. -
High-Density Design
Compact 5.8mm outer diameter optimizes space within conduits and cable trays. -
Streamlined Termination
Eliminates the requirement for complex breakout kits, reducing installation material and labor. -
Flexible Deployment
Suitable for direct splicing to backbone or trunk cables.
Applications
- Intra-building backbone cabling
- Data center high-density patching
- Horizontal LAN cabling
- Vertical riser pathways
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Multimode 50\\u03bcm OM4 |
| Outer Diameter | 5.8mm |
| Jacket Rating | Riser (OFNR) |
| Buffer Type | 900\\u03bcm Tight Buffer |
| Jacket Color | Magenta |
Frequently Asked Questions
What is the jacket rating of this cable?
This cable is Riser (OFNR) rated, suitable for vertical cable runs in buildings.
Does this cable require a breakout kit for termination?
No, the 900\\u03bcm tight-buffered fibers allow for direct termination of connectors.
Can I splice this cable directly?
Yes, the individual fibers can be easily fusion spliced to backbone cables or pigtails.
What is the fiber type?
This is 50\\u03bcm OM4 multimode fiber.
Is the fiber count customizable?
This specific part number is for a 12-fiber count cable; other counts are available in the distribution series.
