Overview

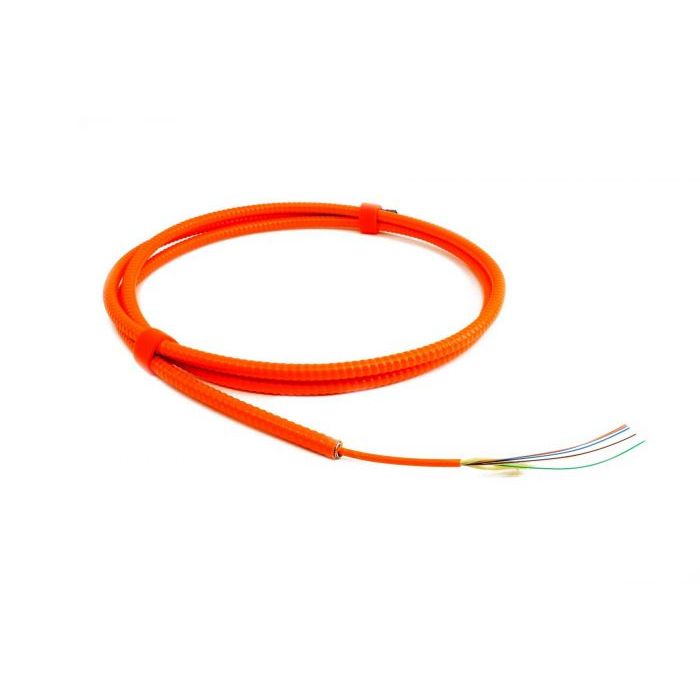

The TLC 12-fiber multimode 62.5µm OM1 distribution cable is designed for reliable indoor backbone and horizontal networking applications. This cable features a ruggedized construction with Aluminum Interlocking Armor (AIA), providing superior crush resistance and physical protection for the internal fiber strands in demanding environments.
With a Riser-rated jacket, this cable is suitable for vertical tray installations in building risers, meeting standard fire safety requirements for indoor use. Its distribution design allows for efficient termination and routing, making it an ideal choice for data center environments and enterprise LAN infrastructures requiring durable, high-density fiber connectivity.
Key Features
-
12-Fiber Configuration
Supports multiple data channels within a single, compact cable diameter for efficient density. -
62.5µm OM1 Multimode Fiber
Optimized for legacy data transmission speeds and shorter reach enterprise networking. -
Aluminum Interlocking Armor (AIA)
Provides robust physical protection against crushing and impact without the need for innerduct. -
Riser-Rated (OFNR) Jacket
Complies with vertical flame spread requirements for safe installation in building riser shafts. -
Distribution Design
Allows for easy connectorization and direct termination to equipment, simplifying deployment. -
Color-Coded Fibers
Facilitates quick and accurate identification of individual fibers during installation and maintenance.
Applications
- Building backbone cabling
- Intra-building horizontal cable runs
- Data center enterprise networking
- Premise installations where physical durability is required
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Multimode (OM1) |
| Core Size | 62.5µm |
| Construction Type | Distribution |
| Armor Type | Aluminum Interlocking Armor (AIA) |
| Jacket Rating | Riser (OFNR) |
| Jacket Color | Orange |
Frequently Asked Questions
What does the AIA designation mean?
AIA stands for Aluminum Interlocking Armor. It is a protective metallic layer applied over the cable, providing significant crush and impact resistance, which eliminates the need for installing protective conduit.
Is this cable suitable for outdoor use?
No, this cable features a Riser (OFNR) jacket, which is designed specifically for indoor vertical riser applications and does not meet the requirements for outdoor or buried environmental conditions.
Can this cable be used for 10 Gigabit speeds?
No, 62.5µm OM1 fiber is generally limited to lower data rates (100Mbps or 1Gbps depending on distance). It is not optimized for 10GbE transmission.
What is the standard jacket color for OM1?
The standard industry jacket color for 62.5µm OM1 multimode fiber is orange.
Can this cable be installed in plenum spaces?
No, this is a Riser-rated cable. Plenum applications require a higher fire-retardant (OFNP) rated cable.
