Overview

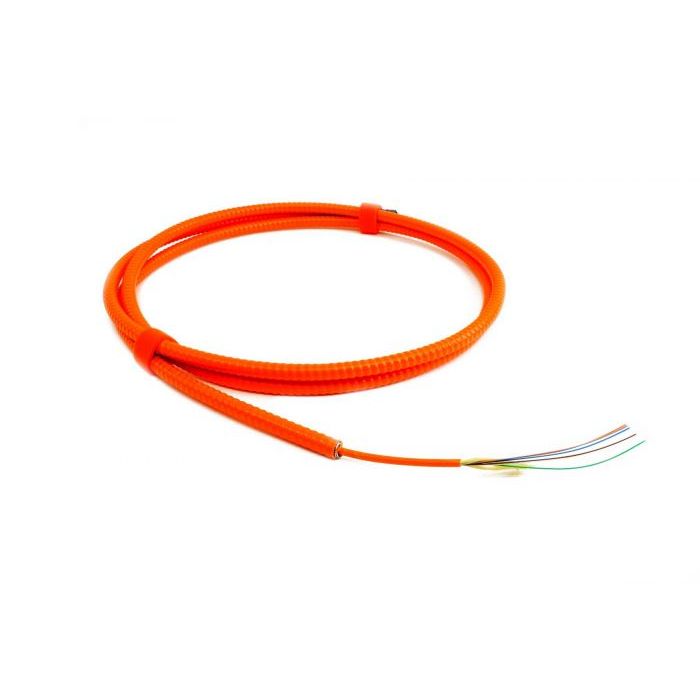

This 12-fiber multimode 62.5um OM1 distribution cable is engineered for high-density indoor networking applications. The cable features 900um tight-buffered fibers, which allow for direct termination of connectors and fusion splicing of pigtails, significantly reducing installation time by eliminating the need for breakout kits.
Constructed with aluminum interlocking armor (AIA), this cable provides robust physical protection for sensitive fiber strands in demanding environments. Designed for riser-rated applications, it is suitable for vertical cable runs within buildings, offering a secure and scalable solution for backbone and trunk cabling needs.
Key Features
-
Tight-Buffered Design
Features 900um buffered fibers that allow for direct connector termination and pigtail splicing, saving installation labor. -
Aluminum Interlocking Armor
Provides a durable mechanical shield against crushing, impact, and rodent damage in high-traffic areas. -
Riser-Rated Jacket
Meets established fire safety standards for vertical installation within commercial and residential buildings. -
High-Density Configuration
Supports efficient cable management for 12-fiber backbone and trunk network requirements. -
OM1 Multimode Compatibility
Optimized for 62.5um multimode fiber systems, ensuring consistent optical signal integrity. -
Flexible Deployment
Designed for efficient indoor use, simplifying routing through cable trays and conduits.
Applications
- Building backbone cabling
- Indoor riser installations
- High-density trunk cabling
- Data center connectivity
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Mode | Multimode (OM1) |
| Core Size | 62.5um |
| Cable Type | Distribution |
| Armor | Aluminum Interlocking Armor (AIA) |
| Outer Diameter | 5.8mm |
| Jacket Rating | Riser |
| Color | Orange |
Frequently Asked Questions
Does this cable require breakout kits for termination?
No, the 900um tight-buffered design allows for direct termination of connectors.
Is this cable suitable for outdoor use?
This cable is specified for riser-rated indoor applications and is not rated for outdoor or aerial deployment.
What is the purpose of the aluminum interlocking armor?
The armor provides added mechanical protection against impact and crushing in challenging indoor environments.
Can I use this for backbone cabling?
Yes, its design makes it an ideal solution for vertical riser and backbone network cabling.
How are the fibers organized in this 12-fiber cable?
The fibers are provided in a distribution format within the 5.8mm outer diameter structure.
