Overview

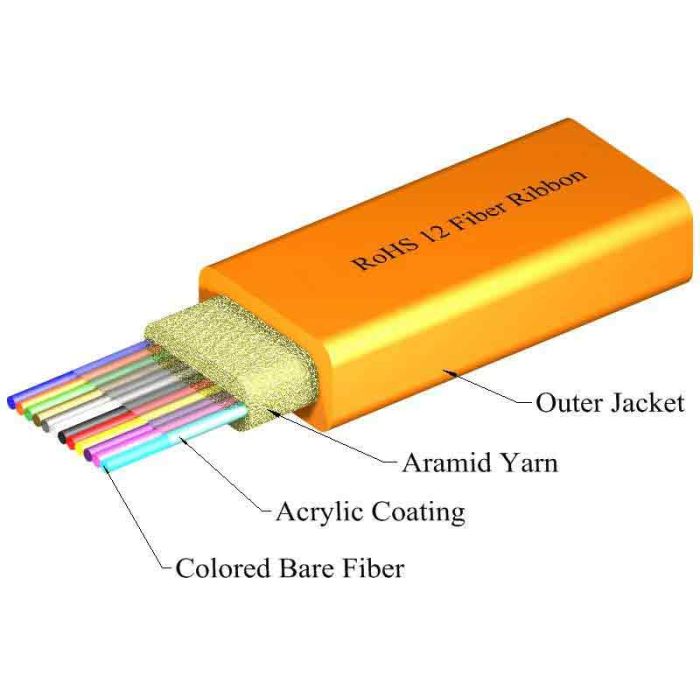

The Light Connection (TLC) 12-fiber ribbon cable is designed for high-density applications requiring efficient space utilization and standardized fiber organization. This multimode 62.5/125 cable features a robust construction utilizing aramid yarn for strength and a durable PVC outer jacket, providing reliable performance in indoor environments.
The ribbon construction facilitates quick, mass-fusion splicing, significantly reducing installation time compared to individual fiber termination. This cable is fully compatible with standard industry termination products and supports the use of fan-out kits for individual fiber breakouts.
Key Features
-
High-Density Ribbon Construction
Features 12 fibers in a single ribbon, allowing for efficient space management and high-volume connectivity. -
Mass-Fusion Compatible
Ribbon design enables rapid mass-fusion splicing, which decreases overall labor time and costs during network deployment. -
Integrated Strength Member
Includes aramid yarn for improved tensile strength, protecting the fiber core during installation. -
PVC Outer Jacket
Provides a durable protective layer for internal cabling, suitable for standard indoor operating environments. -
Industry Standard Color Coding
Utilizes 12 TIA-standard colors, ensuring quick and accurate fiber identification during installation and maintenance. -
Broad Compatibility
Compatible with all current industry-standard termination products and fan-out hardware.
Applications
- High-density data center backbones
- Premise cabling and vertical risers
- Mass-fusion splicing environments
- Inter-rack fiber connectivity
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | The Light Connection |
| Part Number | M62RB12C3NRO |
| Fiber Count | 12 |
| Fiber Type | Multimode 62.5/125 |
| Jacket Material | PVC |
| Strength Member | Aramid Yarn |
| Standards Compliance | RoHS, REACH |
Frequently Asked Questions
Is this cable suitable for outdoor use?
This cable is primarily designed for indoor environments; consult the technical data for specific fire rating information if used in plenum or riser spaces.
Can I order this in custom lengths?
Yes, this product is sold by the meter to accommodate specific project requirements.
Are fan-out kits required for this cable?
Fan-out kits are available and recommended if you intend to terminate the individual ribbon fibers into standard connectors.
Does this cable meet environmental regulations?
Yes, all component materials meet the EU RoHS and REACH Directive standards.
Can I get custom surface print on the jacket?
Yes, custom printing can be accommodated upon request to include specific project or fiber identification.
