Overview

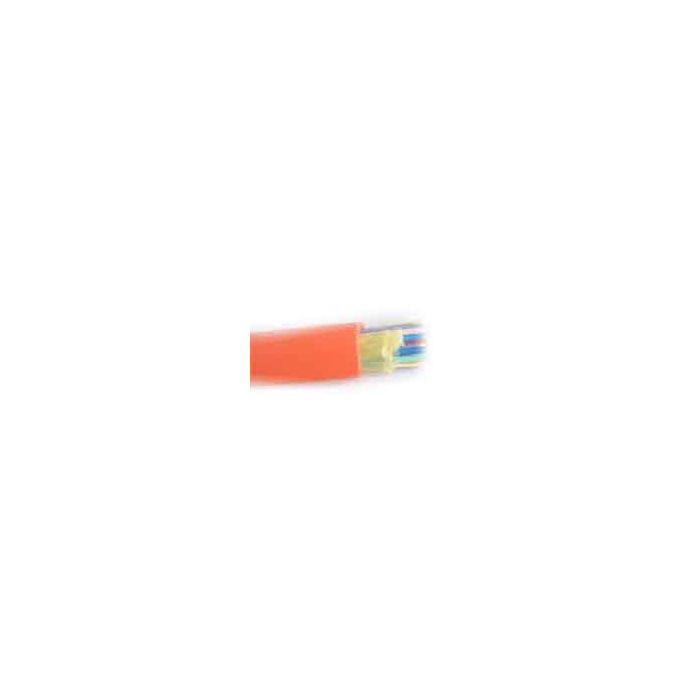

This 24-fiber distribution cable is designed for efficient, high-density networking in indoor environments. Featuring 62.5/125um multimode Infinicor300 fiber, it provides reliable performance for short-to-medium distance data transmission. The cable utilizes a plenum-rated jacket, making it suitable for installation in air-handling spaces where fire safety compliance is required.
The construction includes 900um tight buffered fibers, which facilitate faster and easier field termination by eliminating the need for breakout kits. Connectors can be applied directly to the tight-buffered fibers, or the cable can be easily fusion spliced, providing flexibility for data center and enterprise backbone applications.
Key Features
-
900um Tight Buffered Fibers
Ensures durability and allows for direct termination, reducing installation time and complexity. -
Plenum-Rated Jacket
Meets stringent fire safety standards for use in air-handling spaces, providing peace of mind for building code compliance. -
Distribution Style Construction
Optimized for organized routing in equipment rooms and telecommunication closets. -
Flexible Termination
Supports direct connectorization or fusion splicing, offering versatility for various network configurations. -
High Fiber Density
Supports 24 fibers in a compact profile, maximizing space usage in conduits and cable trays. -
Standardized Subunit Grouping
Fibers are grouped in increments of 12 for easy identification and management during splicing or patching.
Applications
- Enterprise backbone cabling
- Data center inter-connects
- Plenum-rated indoor air-handling environments
- Telecommunications equipment rooms
- Direct-termination field applications
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 24 |
| Fiber Type | Multimode 62.5/125um (Infinicor300) |
| Jacket Rating | Plenum |
| Jacket Color | Orange |
| Outer Diameter | 7.8mm |
| Buffer Type | 900um Tight Buffered |
Frequently Asked Questions
Does this cable require a breakout kit for termination?
No, the cable features 900um tight buffered fibers, allowing for direct connector termination without the need for additional breakout kits.
Can this cable be used in ceiling plenums?
Yes, this cable is plenum-rated, making it appropriate for installation in air-handling spaces.
How are the 24 fibers organized inside the cable?
The fibers are grouped in subunits of 12 fibers each to assist in cable management and identification.
Is this an indoor/outdoor rated cable?
This specific model is designed for indoor (plenum) use.
Can I use this for fusion splicing?
Yes, the distribution design is well-suited for both direct termination and fusion splicing to backbone cabling.
