Overview
This 24-fiber micro distribution cable is engineered for high-density indoor environments where space optimization is critical. Featuring 50µm ClearCurve OM4 multimode fiber, this cable is designed to support high-bandwidth applications in data centers and enterprise premise networks.
The cable construction includes a flame-retardant plenum-rated jacket for compliance with building codes. It is equipped with aluminum interlocking armor, providing robust physical protection against crushing and external damage without sacrificing the flexibility needed for installation in tight spaces.
Key Features
-
High-Density Design
Features a compact 24-fiber count grouped into subunits of 12 for efficient cable management and organization. -
ClearCurve OM4 Fiber
Utilizes laser-optimized multimode fiber for high-performance data transmission and bend-insensitive characteristics. -
Aluminum Interlocking Armor
Provides an extra layer of mechanical protection, safeguarding the internal fibers against impact and crushing. -
Plenum Rated
Constructed with a jacket material suitable for installation in air-handling spaces in accordance with safety standards. -
Compact Form Factor
Designed specifically for micro-distribution applications where routing space is limited. -
Versatile Deployment
Engineered for high-density data center backbones and enterprise premise network cabling.
Applications
- Data center backbones
- Enterprise premise network installations
- High-density fiber optic pathways
- Indoor environments requiring mechanical protection
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | M50MD24C4NPAAIA2 |
| Fiber Count | 24 |
| Fiber Type | Multimode 50um (OM4) |
| Fiber Technology | ClearCurve |
| Armor Type | Aluminum Interlocking Armor |
| Jacket Rating | Plenum |
| Jacket Color | Aqua |
Frequently Asked Questions
What is the primary benefit of the aluminum interlocking armor?
The armor provides enhanced protection against crushing and impact damage, which is essential in high-traffic installation areas where cables might be stepped on or compressed.
Is this cable suitable for outdoor use?
No, this specific cable is plenum-rated and intended for indoor premise and data center applications.
How are the fibers organized within the cable?

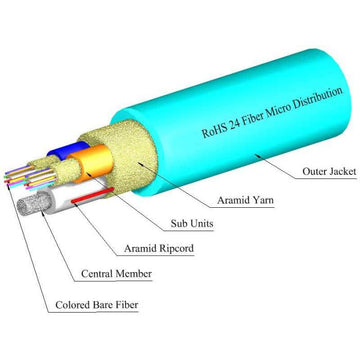

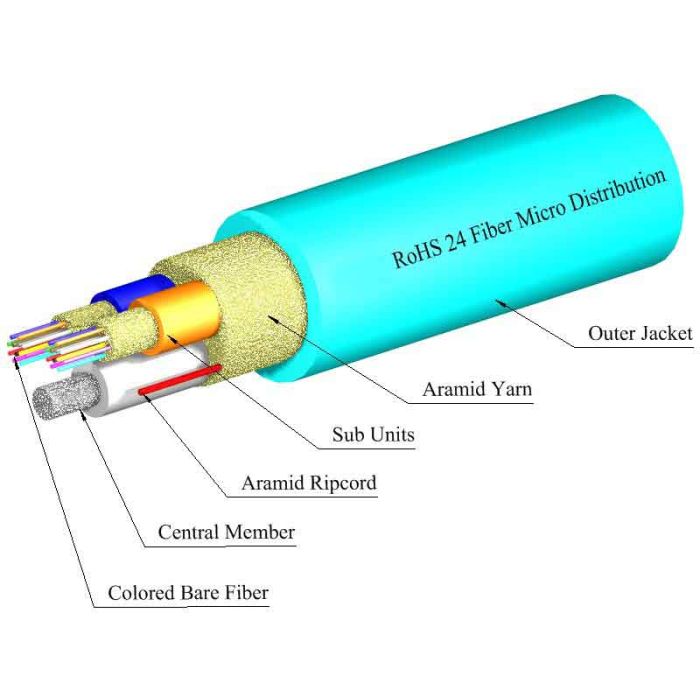

This 24-fiber cable is grouped into two subunits of 12 fibers each to assist in cleaner termination and management.
Can I order this with a different jacket rating?
Yes, Riser and LSZH jacket options are available upon request for this series.
What is the fiber type?
It uses 50µm ClearCurve OM4 multimode fiber, which is optimized for high-speed laser-based systems.
