Overview

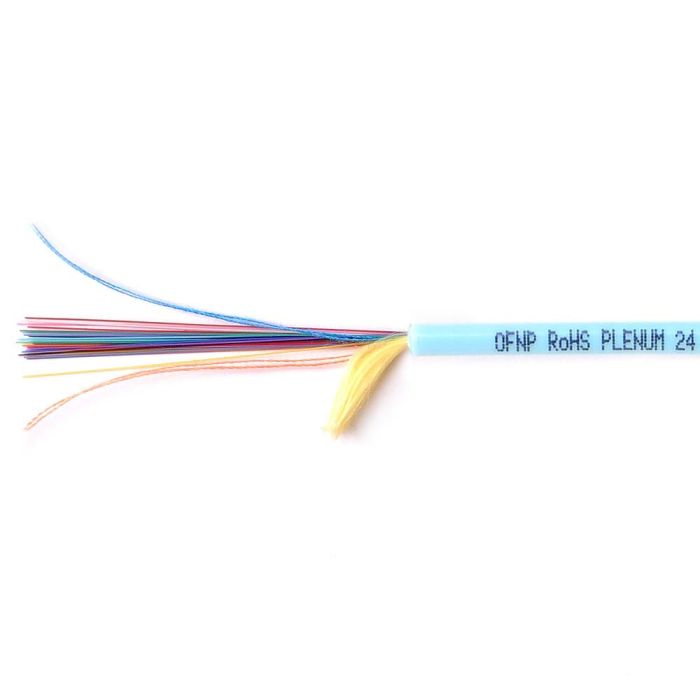

The TLC 24-Fiber High-Density Micro Distribution Cable is engineered for high-performance data center and enterprise networking environments where space is at a premium. Featuring a compact 3.8mm outer diameter, this cable allows for efficient routing in crowded conduits, cable trays, and rack systems, while maintaining the structural integrity required for critical network infrastructure.
Constructed with two color-bound bundles of 12 optical fibers, this cable includes robust aramid yarn for strength and is encased in a plenum-rated (OFNP) PVDF outer jacket. This design meets the stringent flame-retardant requirements of the National Electric Code (NEC) Article 770, ensuring safety in building airflow spaces.
Key Features
-
High-Density Design
Features a small 3.8mm outer diameter, enabling increased cable density in tight spaces and pathways. -
Plenum Rated
Meets NFPA 262 standards for OFNP (Plenum) use, ensuring compliance for installation in building air-handling spaces. -
Color-Coded Bundles
Contains two bundles of 12 fibers with clear color-coding, simplifying identification and reducing installation errors. -
Aramid Strength Member
Incorporates aramid yarn for enhanced tensile strength and protection against mechanical stress. -
NEC Compliant
Fully meets the installation requirements for NEC Article 770, supporting safe deployment in indoor environments. -
Durable PVDF Jacket
Constructed with a PVDF outer jacket for excellent flame resistance and chemical stability.
Applications
- Data Center Interconnects
- Backbone Cabling in Enterprise Networks
- High-Density Patching Environments
- Plenum Airflow Spaces
- Building Backbone Distribution
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 24 |
| Fiber Type | Multimode (OM3) |
| Core Size | 50µm |
| Cable Type | Micro Distribution |
| Outer Diameter | 3.8mm |
| Jacket Rating | Plenum (OFNP) |
| Jacket Material | PVDF |
| Standards | NFPA 262, NEC Article 770 |
Frequently Asked Questions
Is this cable suitable for outdoor use?
No, this cable is designed with a plenum (OFNP) rating for indoor use in air-handling spaces.
What is the fiber count for this cable?
This cable contains 24 individual optical fibers.
Does the jacket comply with building safety codes?
Yes, it is plenum-rated (OFNP) and meets NEC Article 770 requirements.
What is the primary benefit of the Micro Distribution construction?
The small 3.8mm outer diameter allows for higher density routing in tight conduits and cable trays.
Are the fibers color-coded?
Yes, the fibers are organized into two color-coded bundles of 12 for efficient identification.
