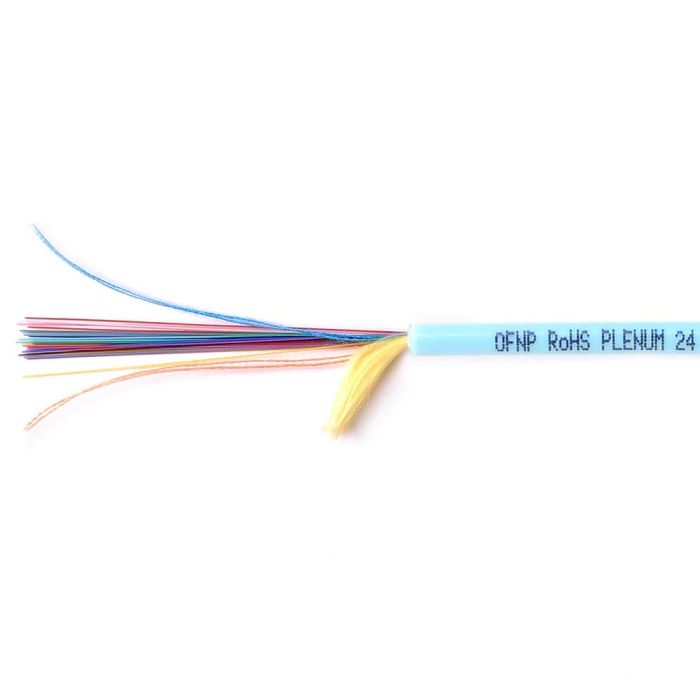

TLC 24 Fiber Multimode 50um OM4 High-Density Plenum Fiber Optic Cable Aqua 2.95mm (per meter)

Overview

The TLC 24-fiber high-density micro distribution cable is engineered for space-constrained network environments where high fiber density is required. This cable utilizes a compact design featuring two bound bundles of 12 colored 250µm fibers, providing efficient routing and termination in dense rack and data center applications.

Constructed with aramid strength members and a robust PVDF outer jacket, this cable is fully compliant with NFPA 262 (Plenum) standards. Its small outer diameter allows for easier installation in tight pathways while meeting the requirements of NEC Article 770 for indoor building installations.

Key Features

• High-Density Construction
  Features 24 fibers in a compact 2.95mm jacket to maximize pathway utilization.
• Plenum Rated
  NFPA 262 rated for safe use in air-handling spaces and plenums.
• Color-Coded Fibers
  Includes 12 TIA standard colored 250µm fibers for simplified identification and termination.
• Aramid Strength Members
  Provides tensile strength to protect fibers during installation.
• Compact Diameter
  Small 2.95mm OD makes it ideal for congested rack environments.
• NEC Compliance
  Meets NEC Article 770 requirements for building cable installations.

Applications

• Data Center backbone cabling
• Enterprise network distribution
• High-density rack and panel systems
• Plenum-rated pathways and air-handling spaces

Technical Specifications

Frequently Asked Questions

What is the jacket rating?
This cable is rated OFNP (Plenum) per NFPA 262.

Are the fibers color-coded?
Yes, the cable uses 12 TIA standard colored fibers for identification.

What is the outer diameter?
The outer diameter is 2.95mm.

Can this be used in risers?
While this is a plenum-rated cable, check local fire codes; plenum (OFNP) is generally acceptable for both riser and plenum spaces.

Is this sold as a pre-terminated assembly?
No, this is bulk fiber optic cable sold by the meter.
