Overview

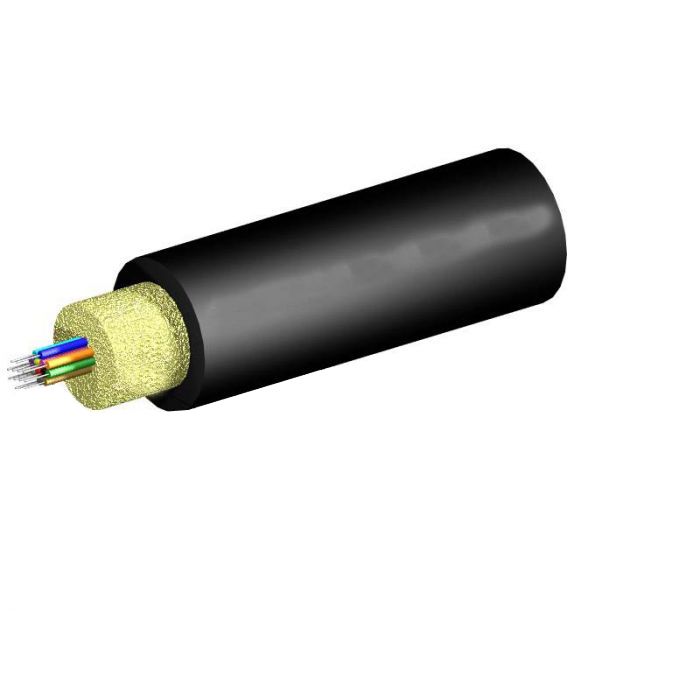

The TLC 24 Fiber Multimode 62.5um OM1 Distribution Cable is a robust indoor optical solution designed for backbone and trunking applications. It features 900µm tight-buffered fibers, which allow for direct connector termination without the need for additional breakout kits, significantly simplifying the installation process for technicians.
This cable is constructed with aluminum interlocking armor (AIA), providing enhanced mechanical protection against crushing and impact in demanding environments. This Riser-rated cable is intended for use in vertical cable runs and general indoor distribution, ensuring high performance and physical security for critical network links.
Key Features
-
900µm Tight Buffer
Allows for direct termination of connectors or easy fusion splicing to pigtails, reducing installation time. -
Aluminum Interlocking Armor
Provides superior crush resistance and physical protection against accidental damage in high-traffic areas. -
Distribution Design
Optimized for efficient routing in building backbones and trunking systems. -
Simplified Termination
Eliminates the requirement for complex breakout kits, streamlining field installation. -
OM1 Multimode Fiber
Standardized 62.5µm fiber construction suitable for legacy network infrastructure. -
Riser-Rated Jacket
Meets necessary fire safety requirements for vertical installations within building shafts.
Applications
- Building backbone cabling
- Enterprise network trunking
- Vertical riser installations
- General indoor distribution
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 24 |
| Fiber Type | Multimode (OM1) |
| Core Size | 62.5µm |
| Construction | Distribution |
| Buffer Type | 900µm Tight Buffered |
| Armor | Aluminum Interlocking Armor (AIA) |
| Rating | Riser |
| Jacket Color | Orange |
Frequently Asked Questions
Does this cable require a breakout kit?
No, the 900µm tight-buffered design allows for direct termination of connectors or direct fusion splicing.
Can this cable be used outdoors?
This specific cable is Riser-rated for indoor use. Consult with an engineer if outdoor-rated, moisture-resistant protection is required.
What is the purpose of the aluminum interlocking armor?
The armor provides a layer of physical protection against crushing and external mechanical forces in exposed areas.
How are the fibers organized in a 24-fiber count?
For fiber counts over 12, the fibers are organized into subunits of 12 fibers each.
Is this compatible with standard OM1 connectors?
Yes, this cable is designed for use with standard 62.5µm multimode fiber connectors.
