Overview

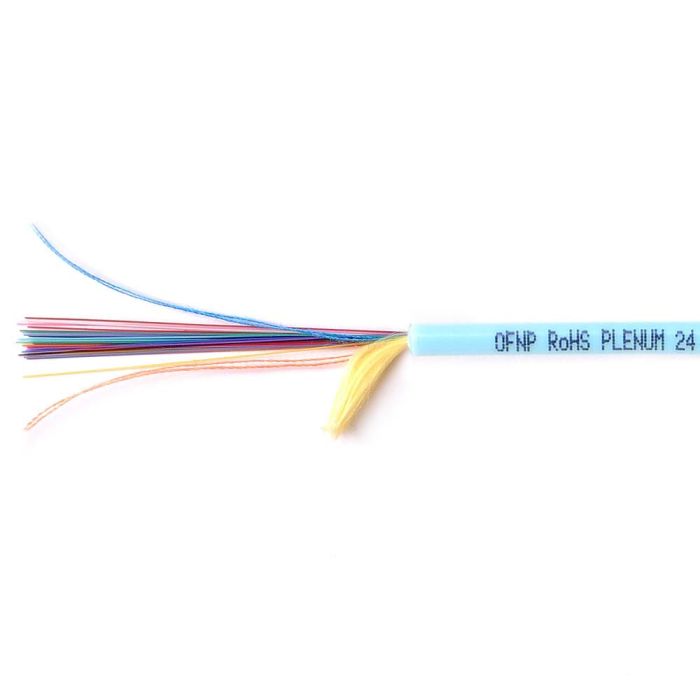

The TLC 24 Fiber High-Density Micro Distribution Cable is designed for space-constrained environments where high fiber counts and compact cabling are required. This cable features 24 color-coded 250µm bare fibers organized into two bundles, providing efficient routing within dense network pathways.
Constructed with aramid yarn for tensile strength and a PVDF outer jacket, this cable meets NFPA 262 (Plenum) fire safety ratings, making it suitable for installation in air-handling spaces. It is engineered to satisfy the rigorous application requirements of the National Electric Code (NEC) Article 770 for indoor fiber deployments.
Key Features
-
250µm Colored Bare Fiber
Individual fibers are color-coded for rapid identification and organized termination. -
Small Outer Diameter
Compact profile facilitates installation in high-density conduits and cable trays. -
Plenum Rated (OFNP)
Compliant with NFPA 262 standards for use in environmental air-handling spaces. -
NEC Article 770 Compliance
Meets building code requirements for safe indoor fiber optic installations. -
Robust Construction
Features integrated aramid yarn for mechanical protection and tensile support. -
Standard Color Coding
Uses industry-standard TIA color schemes for consistent network mapping.
Applications
- High-density data center backbones
- Plenum-rated indoor enterprise networks
- Compact cable trays and raceways
- Building riser and plenum infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Fiber Count | 24 |
| Fiber Type | Multimode (OM3) |
| Core Size | 50µm |
| Cable Diameter | 2.95mm OD |
| Jacket Material | PVDF |
| Rating | NFPA 262 (Plenum) |
Frequently Asked Questions
Is this cable suitable for outdoor use?
No, this cable is designed for indoor plenum applications and is not rated for outdoor environmental exposure.
What is the jacket material?
The outer jacket is constructed from PVDF (Polyvinylidene Fluoride) to meet plenum fire safety requirements.
Does this cable include footage markings?
Yes, the standard surface print includes construction details, NEC rating, fiber type, and footage markers.
How are the fibers organized inside the cable?
The cable consists of two bound bundles containing 12 color-coded fibers each.
Can I order this in custom colors?
Yes, custom colors may be accommodated via special order.
