Overview

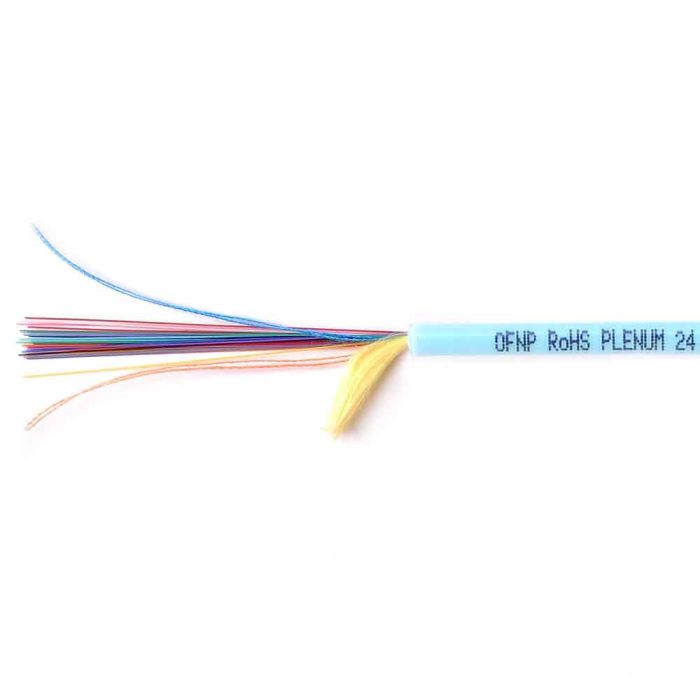

The TLC 24-fiber high-density cable is designed for space-constrained environments in data centers and enterprise networks. This multimode OM4 50um fiber optic cable features a plenum-rated jacket, making it suitable for installation in air-handling spaces where fire safety compliance is required.
The cable utilizes a compact 3.8mm outer diameter to maximize pathway capacity while supporting high-bandwidth 10Gbps, 40Gbps, and 100Gbps applications. Its construction is optimized for high-density patching and trunking, providing technicians with a flexible, easy-to-manage solution for complex fiber environments.
Key Features
-
High Fiber Density
Contains 24 fibers within a slim 3.8mm profile to maximize rack and conduit space. -
Plenum Rated
Constructed with fire-retardant materials for safe installation in plenum air-handling spaces. -
OM4 Multimode Fiber
Optimized for high-speed data transmission over short to medium distances in local area networks. -
Aqua Jacket
Color-coded for easy identification as OM4 laser-optimized multimode fiber. -
Compact Design
The reduced 3.8mm outer diameter improves cable tray utilization and airflow. -
50/125um Core/Cladding
Industry-standard dimensions ensure compatibility with existing multimode equipment.
Applications
- Data Center Backbone
- Enterprise LAN Networks
- Storage Area Networks (SAN)
- Central Office Patching
- High-Density Termination
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 24 |
| Fiber Mode | Multimode (OM4) |
| Core Diameter | 50um |
| Cable Diameter | 3.8mm |
| Jacket Rating | Plenum |
| Jacket Color | Aqua |
Frequently Asked Questions
Is this cable suitable for outdoor use?
No, this cable is designed for indoor plenum environments and is not rated for outside plant (OSP) applications.
What is the primary use for 24-fiber high-density cable?
It is commonly used for high-capacity trunking between switches, servers, and storage arrays in data centers.
Can this cable be used for 10Gbps speeds?
Yes, OM4 fiber is laser-optimized and specifically designed to support 10Gbps and higher data rates over standard distances.
Why is the jacket color aqua?
Aqua is the TIA-standard color designation for OM3 and OM4 laser-optimized multimode fiber optic cabling.
Is this cable sold in fixed lengths?
This product is sold per meter to accommodate specific project requirements.
