Overview

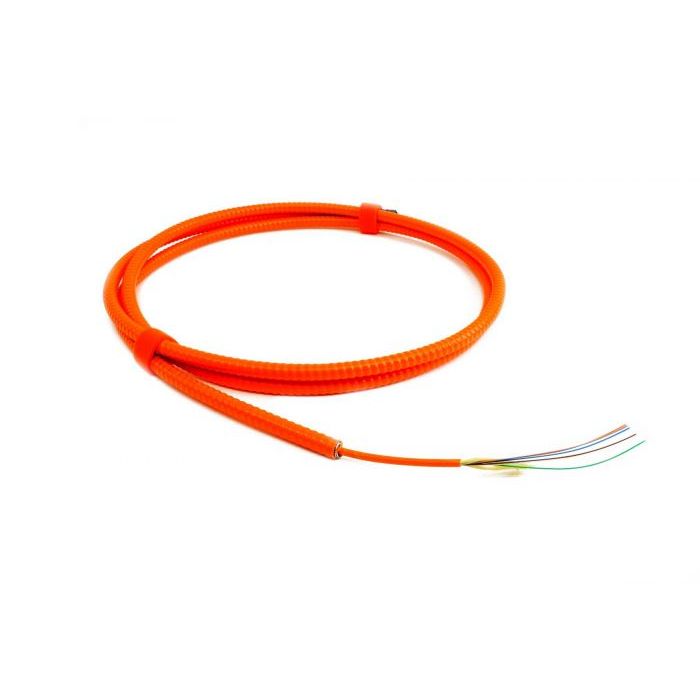

The TLC 4 Fiber Multimode Distribution Cable is designed for backbone and trunk cabling applications within indoor environments. It features 50um OM2 fiber optics, providing a reliable solution for high-speed data transmission in local area networks and campus backbones.
Engineered with 900μm tight-buffered fibers, this cable simplifies termination processes by eliminating the need for complex breakout kits. Connectors can be applied directly to the tight-buffered fibers, and the cable structure supports efficient fusion splicing to backbone or trunk systems. This riser-rated cable is housed in a durable orange jacket suitable for vertical installations between floors.
Key Features
-
Tight-Buffered Construction
Features 900μm fibers that allow for direct connector termination, reducing installation time and complexity. -
Riser-Rated Jacket
Designed for use in vertical pathways and plenum-free riser spaces, meeting essential safety standards for building installations. -
Simplified Splicing
The distribution design allows for direct fusion splicing of pigtails to trunk or backbone fibers. -
OM2 Multimode Performance
Utilizes 50um optimized glass to ensure consistent optical performance for enterprise networking applications. -
Color-Coded Fibers
Individual fibers are tight-buffered and color-coded for quick identification and efficient cable management. -
Standard 4.4mm Outer Diameter
Compact cable profile facilitates easy installation in high-density conduits and trays.
Applications
- Enterprise LAN backbones
- Campus backbone cabling
- Vertical building risers
- Data center trunking
- Premise wiring
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 4 |
| Fiber Mode | Multimode (OM2) |
| Core Size | 50μm |
| Cable Type | Distribution |
| Jacket Rating | Riser |
| Outer Diameter | 4.4mm |
| Jacket Color | Orange |
| Buffer Size | 900μm |
Frequently Asked Questions
Is this cable suitable for outdoor use?
No, this is a distribution-style riser-rated cable intended for indoor building installations.
Can I terminate connectors directly onto this cable?
Yes, the 900μm tight-buffered fibers allow for direct field termination of connectors without needing breakout kits.
What does the Riser rating mean?
The cable meets flammability requirements for use in vertical shafts or between floors within a building.
Does this cable include armor?
No, this specific part number is the non-armored version of the distribution cable.
Can this cable be fusion spliced?
Yes, the design is fully compatible with standard fusion splicing techniques for pigtails or backbone connections.
