Overview

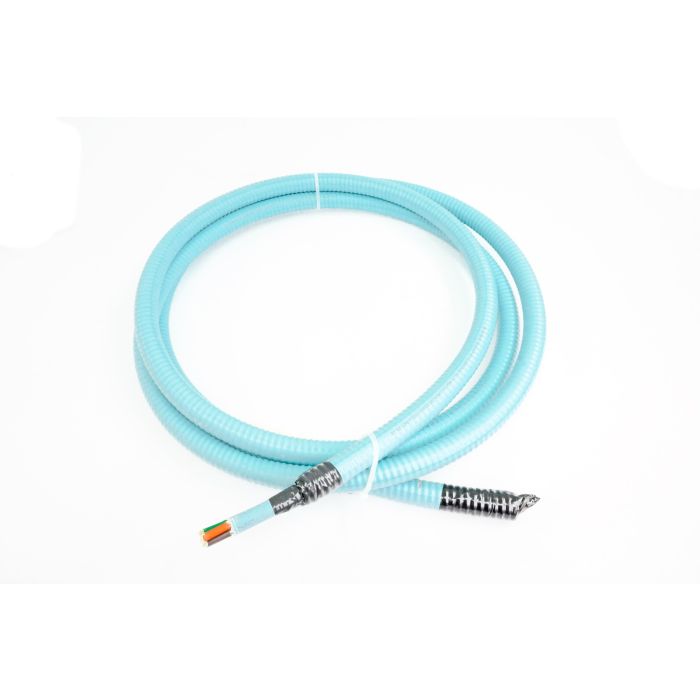

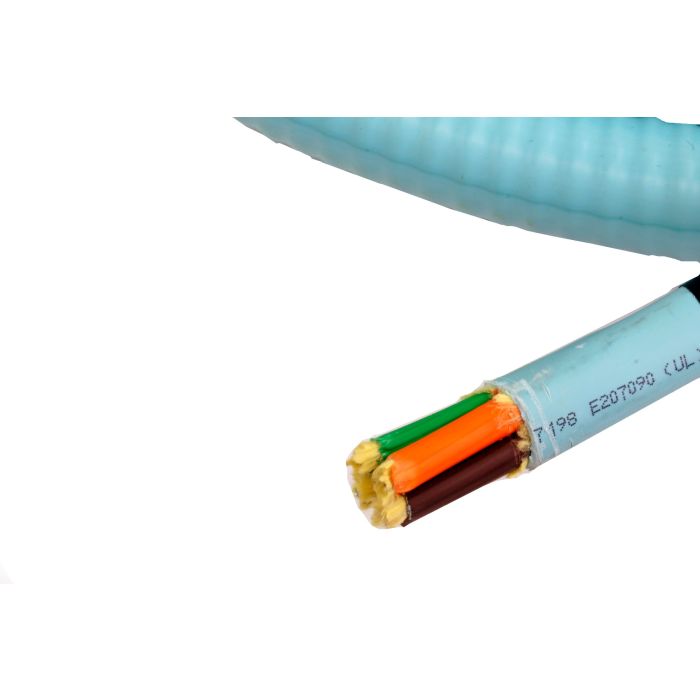

This distribution-style fiber optic cable features 48 multimode 50um OM3 ClearCurve fibers, protected by 900um tight buffers. The design is engineered for both indoor and outdoor environments where physical protection is paramount, utilizing aluminum interlocking armor to provide high crush resistance and durability against mechanical stress.
The cable is rated for plenum installations, making it suitable for use in air handling spaces. The tight-buffered construction facilitates efficient field termination, allowing connectors to be applied directly to the fibers without the need for additional breakout kits, which streamlines installation workflows in data center and enterprise backbones.
Key Features
-
48-Fiber Count
Supports high-density connectivity requirements in backbone and horizontal cabling applications. -
50um OM3 ClearCurve Fiber
Optimized for high-speed data transmission and enhanced bend performance in compact cable management environments. -
Aluminum Interlocking Armor
Provides robust physical protection against crushing and impact in high-traffic installation areas. -
Plenum Rated Jacket
Complies with stringent fire safety codes for installation in air-handling ducts and plenums. -
900um Tight Buffer
Eliminates the requirement for breakout kits, simplifying the connectorization process. -
Direct Connector Termination
Allows for faster installation times by enabling field termination of connectors directly onto the fibers.
Applications
- Data Center backbone cabling
- Enterprise LAN/WAN installations
- Air-handling space (plenum) network infrastructure
- High-traffic areas requiring additional mechanical protection
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 48 |
| Fiber Type | Multimode 50um OM3 ClearCurve |
| Cable Type | Distribution |
| Armor Type | Aluminum Interlocking Armor |
| Jacket Rating | Plenum |
| Buffer Type | 900um Tight Buffered |
| Jacket Color | Aqua |
Frequently Asked Questions
Does this cable require a breakout kit for termination?
No, the 900um tight buffer design allows for direct termination of connectors onto the fibers.
Is this cable suitable for outdoor use?
This cable is designed with a plenum-rated jacket, primarily for indoor air-handling spaces. Check specific project requirements if outdoor use is intended.
How are the fibers organized in this cable?
Fibers are grouped in subunits of 12 fibers each.
Can I use this in plenum spaces?
Yes, the jacket is plenum-rated, meeting necessary fire safety standards for plenum installations.
What is the primary benefit of the aluminum interlocking armor?
It provides significantly higher protection against mechanical impact and crushing compared to non-armored cables.
