Overview

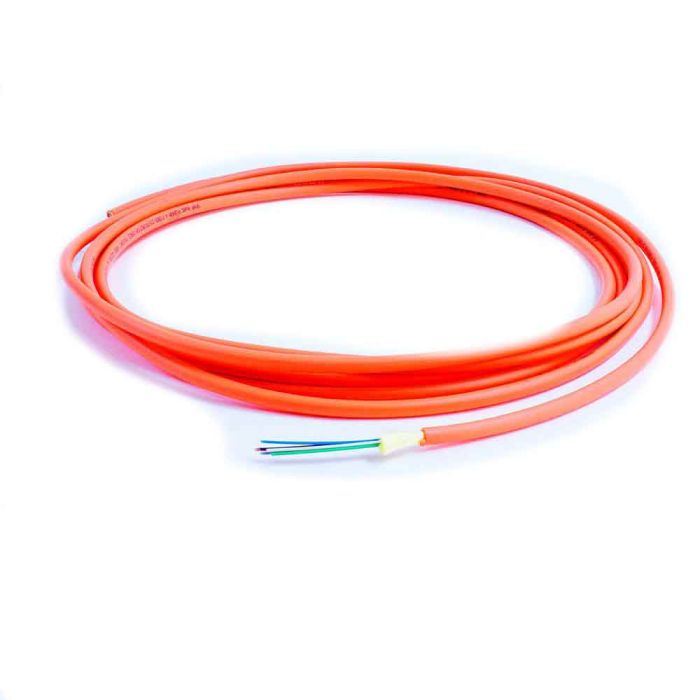

The TLC 6-fiber distribution cable is designed for efficient, high-density fiber optic installations. Featuring 900μm tight-buffered fibers, this cable architecture allows for direct field termination of connectors without the requirement for breakout kits, significantly reducing installation time and complexity.
This cable is built for indoor environments and features a riser-rated jacket, making it suitable for vertical pathways between floors. The cable is constructed with an outer diameter of 4.8mm, providing a compact footprint while maintaining durability for protected routing in enterprise networks and data centers.
Key Features
-
Tight-Buffered Design
Features 900μm fibers that allow for direct termination, eliminating the need for expensive and time-consuming breakout kits. -
Riser-Rated Jacket
Engineered with materials suitable for vertical cable runs in building shafts, ensuring compliance with standard fire safety requirements. -
Compact Outer Diameter
The 4.8mm OD allows for efficient space utilization in high-density cable trays and conduits. -
Easily Terminated
Designed to support both field-installable connectors and fusion splicing of pigtails for backbone connectivity. -
Multimode OM2 Performance
Optimized for 50/125μm multimode applications, providing reliable data transmission for local area networks. -
Standard Color Coding
Features an orange outer jacket for clear identification as a multimode fiber asset within an installation.
Applications
- Enterprise LAN backbones
- Data center equipment interconnections
- Vertical riser pathways
- Direct termination connectivity
- Campus network distribution
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 6 |
| Fiber Type | Multimode 50/125μm (OM2) |
| Cable Type | Distribution |
| Jacket Rating | Riser |
| Cable Diameter | 4.8mm |
| Buffer Size | 900μm Tight Buffer |
| Jacket Color | Orange |
Frequently Asked Questions
Can I terminate connectors directly onto this cable?
Yes, the 900μm tight-buffered fibers allow for direct field termination of connectors without needing additional breakout kits.
Is this cable suitable for outdoor use?
No, this cable is riser-rated for indoor use. It is not designed to withstand outdoor environmental conditions.
Can this cable be used in plenum spaces?
No, this is a riser-rated cable. Plenum-rated cables are required for air-handling spaces.
What is the fiber core size?
This cable uses 50/125μm multimode (OM2) fiber.
Is the fiber count fixed?
This specific SKU is for a 6-fiber cable, but the distribution style is available in counts ranging from 2 to 144 fibers.
