TLC 6 Fiber SM SMF28 Ultra Dry Flat Drop Cable PE Black (per meter)

Fosco Connect Part No.: S09FD06CZEBL-TLC

  • $ 1.25 or



Price is for per meter.

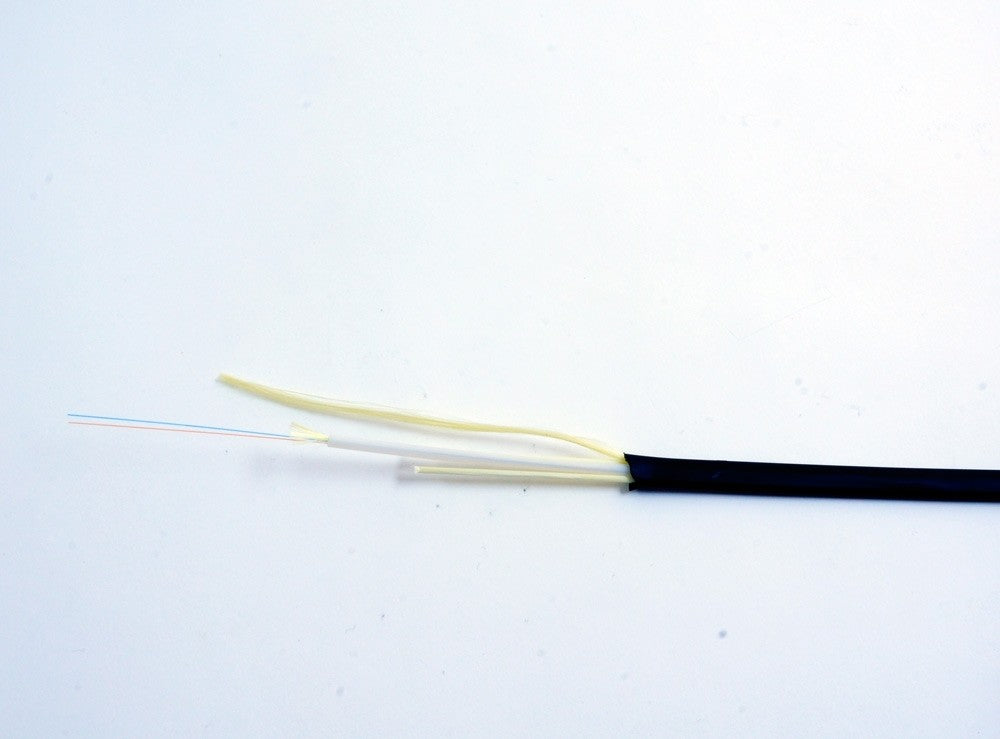

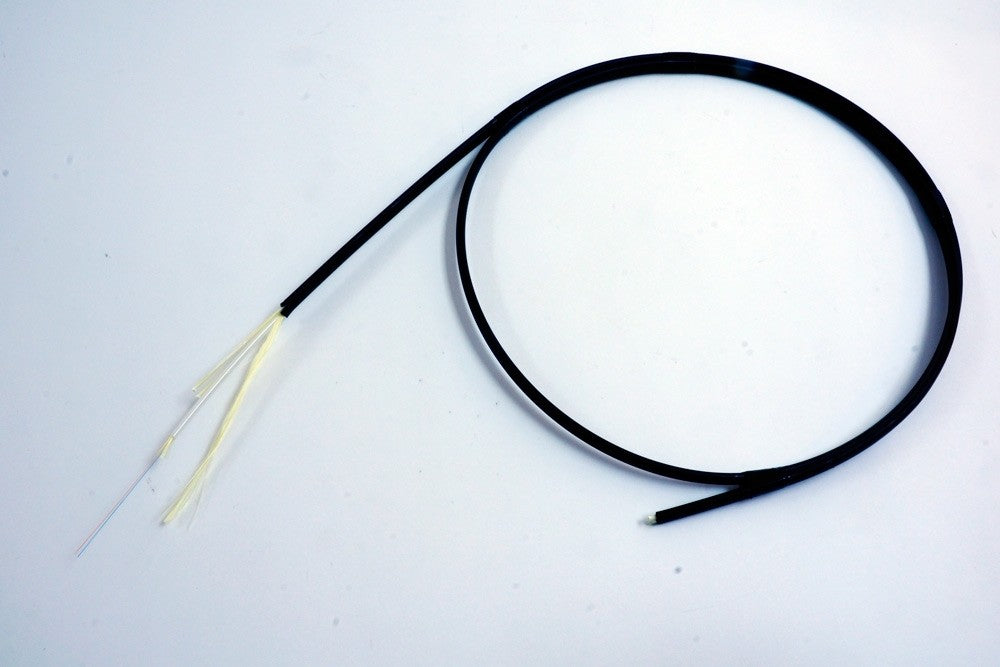

Drop FTTP offers the most flexible solution for fiber to the premise applications. The Drop cable unit allows for easy location after installation. The small profile reduces cost and increases both ease of use and access to small conduits. The durable design incorporates two dielectric rigid rods for tensile and crush protection, bracketing a single gel filled, enhanced loose tube containing containing 2 fibers.

Features

  • Core Diameter: 8.2 μm
  • Cladding Diameter: 125+/-0.7μm
  • Core-Clad Concentricity Error: ≤0.5μm
  • Cladding Non-Circularity: ≤0.7%
  • Coating Diameter: 242+/-0.5 μm
  • Coating-Cladding Concentricity: < 12 μm
  • Mode Field Diameter: 9.2+/-0.4 μm@1310nm; 10.4+/-0.5 μm@1550nm
  • Cable Cutoff Wavelength: ≤1260 nm
  • PMD Link Design Value: ≤0.04ps/√km
  • Maximum Individual Fiber PMD: ≤0.1ps/√km
  • Attenuation (Maximum):
    ≤ 0.32 dB/km @1310nm
    ≤ 0.32 dB/km @1383nm
    ≤ 0.21 dB/km @1490nm
    ≤ 0.18 dB/km @1550nm
    ≤ 0.20 dB/km @1625nm

Download Product Specification
