Overview

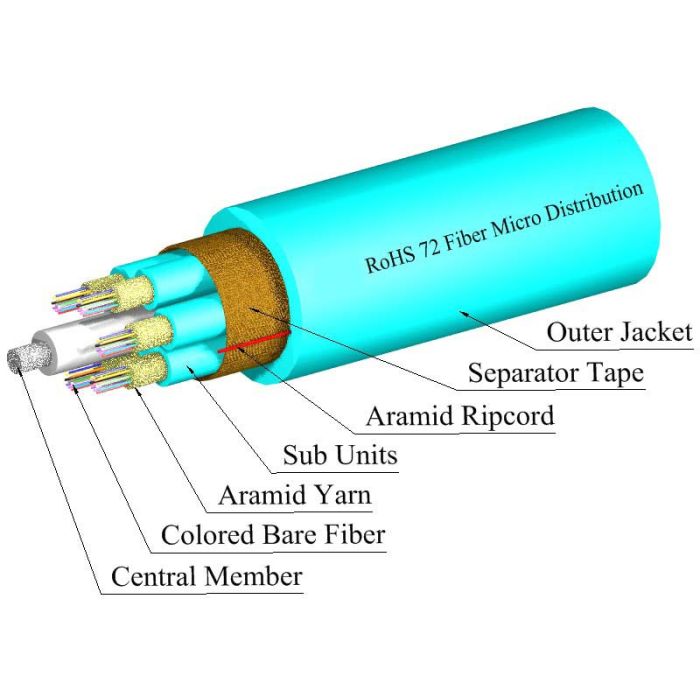

The TLC 72 Fiber 50µm OM3 Micro-Distribution cable is a high-density, space-saving solution designed for indoor network backbones. Utilizing a 6-tube design with color-coded sub-units, this cable simplifies fiber identification and organization during installation in data centers and enterprise environments.
Featuring ClearCurve multimode fiber, this cable is engineered for high-bandwidth performance and bend-insensitivity. The plenum-rated jacket allows for installation in air-handling spaces without the need for conduit, providing a flexible and efficient deployment path for modern network infrastructures.
Key Features
-
High-Density Design
Features 72 fibers in a compact micro-distribution form factor to maximize rack and pathway space. -
Plenum Rated
Constructed with fire-retardant materials suitable for installation in plenums and air-handling ducts. -
ClearCurve Multimode Fiber
Uses advanced bend-insensitive OM3 fiber for consistent performance in tight installation conditions. -
Color-Coded Sub-Units
Utilizes a 6-tube color-coding system to streamline fiber management and reduce termination errors. -
50µm OM3 Core
Optimized for 10 Gigabit Ethernet applications and high-speed data transmission. -
Easy Termination
Tight-buffered construction allows for direct field termination or splicing.
Applications
- Data Center Backbone
- Enterprise Network Cabling
- Intra-building Fiber Backbones
- Plenum Air-Handling Spaces
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Fiber Count | 72 |
| Fiber Type | 50µm OM3 (ClearCurve) |
| Cable Design | 6-Tube Micro-Distribution |
| Jacket Rating | Plenum |
| Jacket Color | Aqua |
Frequently Asked Questions
What does the 6-tube design mean?
The cable is organized into 6 distinct sub-units, each containing a subset of the 72 fibers, which are color-coded to allow for rapid identification during termination.
Is this cable suitable for outdoor use?
No, this cable features a plenum-rated jacket intended for indoor applications in air-handling spaces; it is not rated for outdoor environmental exposure.
What type of connectors can be used with this cable?
As a micro-distribution cable, it is suitable for standard fiber optic connectors such as LC, SC, or MPO, depending on your termination method.
Does it support 10G speeds?
Yes, the OM3 fiber core is optimized for 10 Gigabit Ethernet applications over required distances.
Are the sub-units color-coded?
Yes, the cable features color-coded sub-units to assist in efficient fiber management and tracking.
