Overview

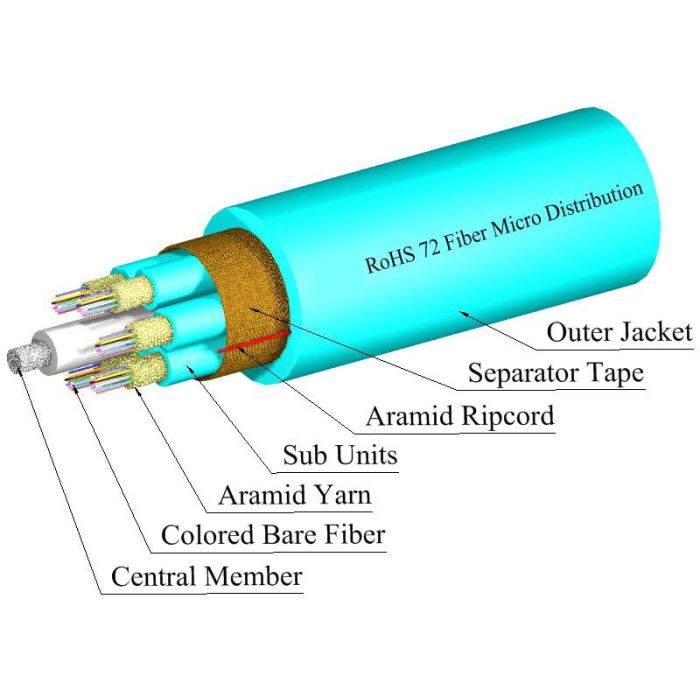

The TLC 72 Fiber Multimode 50um OM3 Micro Distribution Fiber Optic Cable is engineered for high-density indoor environments where space optimization is critical. Designed for data centers and premise networks, this cable features a plenum-rated jacket, ensuring compliance with indoor fire safety building codes. The design incorporates 72 individual fibers organized into subunits of 12 fibers each to facilitate efficient routing and management.

Key Features

• 72-Fiber Count: Provides high-density connectivity, allowing for consolidation of multiple data paths in limited spatial areas.
• Subunit Organization: Fibers are grouped in units of 12, which simplifies identification and termination processes during installation.
• Plenum-Rated Jacket: Features a flame-retardant outer sheath suitable for installation in air-handling spaces as defined by NFPA standards.
• 50um OM3 Multimode Fiber: Optimized for 10 Gigabit Ethernet applications, supporting high-bandwidth data transmission over standard enterprise distances.
• Micro-Distribution Construction: The compact cable diameter reduces cable tray congestion and improves airflow in high-density environments.
• Available Armor Option: Supports integration with aluminum interlocking armor for increased mechanical protection in high-traffic or hazardous routing areas.

Technical Specifications
