Overview
The TLC 72-fiber multimode micro distribution fiber optic cable is designed for high-density indoor environments where space optimization is critical. Utilizing OM1 62.5um fiber, this cable is engineered for use in premise networks and data centers. The compact design makes it an efficient choice for installations where conduit or tray space is limited.
This cable features a plenum-rated jacket, ensuring compliance with strict fire safety codes for air-handling spaces. For deployments requiring greater than 12 fibers, the construction utilizes 12-fiber subunits to facilitate organized cable management and easier termination during installation.
Key Features
-
High-Density Design
Compact profile allows for increased fiber counts in limited spatial footprints. -
OM1 Multimode Fiber
Standardized 62.5/125 micron glass core for reliable legacy network transmission. -
Plenum-Rated Jacket
Tested to meet building fire safety requirements for installation in plenums and air ducts. -
Subunit Organization
Fiber counts exceeding 12 are grouped in color-coded 12-fiber subunits for simplified identification. -
Versatile Deployment
Suitable for use in backbone cabling within premises and data center interconnects. -

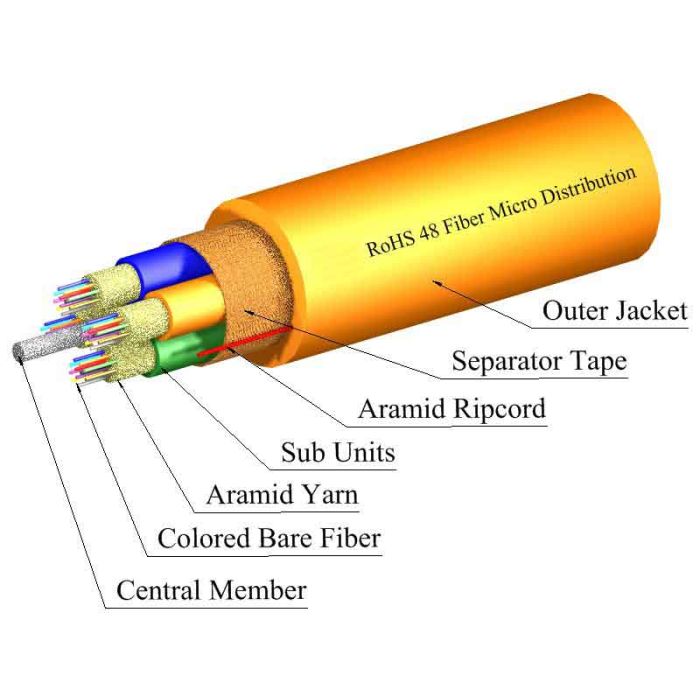

Micro Distribution Construction
Engineered to minimize cable diameter while maintaining robust protection for internal fibers.
Applications
- Data center backbones
- Premise network cabling
- Air-handling space installations (Plenum)
- High-density fiber management environments
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | M62MD72C3NPO6TO |
| Fiber Count | 72 |
| Fiber Type | Multimode (OM1) |
| Core Size | 62.5um |
| Jacket Rating | Plenum |
| Construction | Micro Distribution |
Frequently Asked Questions
What is the primary benefit of micro distribution cable?
It provides a significantly smaller cable diameter than standard distribution cables, which is ideal for tight spaces or crowded conduit systems.
Is this cable suitable for outdoor use?
No, this cable is designed for indoor applications. Refer to outdoor-rated cables for exterior installations.
How are the 72 fibers organized?
This cable utilizes 12-fiber subunits, ensuring the fibers are grouped for easier identification and cable management.
Can I use this cable in a riser space?
While this is a plenum-rated cable, it can typically be used in riser environments as plenum rating exceeds the requirements for riser-only applications.
Does this cable include armor?
The standard version listed is non-armored; however, versions with aluminum interlocking armor are available for environments requiring additional mechanical protection.
