Overview

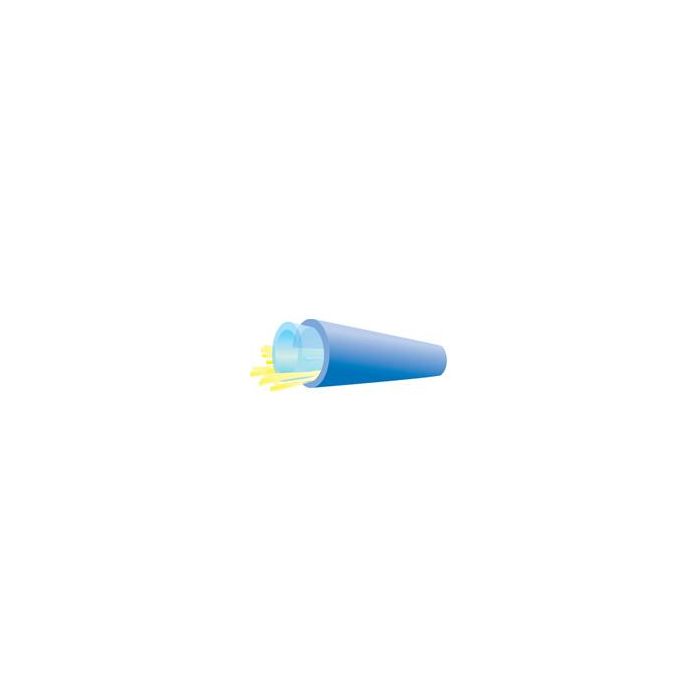

The TLC 900µm Hytrel Furcation Tube is designed to provide robust protection for 250µm coated optical fibers. It serves as an essential component for technicians preparing fibers for termination, offering a protective layer that enhances fiber handling and strain relief during connectorization.
Constructed from high-quality Hytrel material, this tubing provides excellent flexibility and mechanical stability. It is intended for use in indoor fiber optic installations, including data centers, telecommunications closets, and enterprise networking environments where individual fiber management and protection are critical.
Key Features
-
Hytrel Construction
Durable, flexible material that offers high resistance to environmental stress. -
900µm Outer Diameter
Standard size for effective fiber protection and compatibility with most industry-standard connectors. -
250µm Fiber Compatibility
Specifically engineered to accept and protect standard coated optical fibers. -
Color-Coded Identification
Blue jacket allows for efficient fiber routing and identification in complex cabling systems. -
Versatile Termination
Compatible with a wide range of connector styles for diverse application needs.
Applications
- Fiber optic connector termination
- Pigtail and patch cord assembly
- Cable management in networking closets
- Data center fiber organization
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Furcation Tubing |
| Material | Hytrel |
| Outer Diameter | 900µm |
| Fiber Compatibility | 250µm coated fiber |
| Color | Blue |
Frequently Asked Questions
What is the primary purpose of this furcation tube?
It is used to protect bare 250µm coated fiber, providing the necessary bulk for secure fiber optic connector termination.
What material is the tubing made of?
This tubing is manufactured from Hytrel, a flexible and durable thermoplastic elastomer.
Can this be used with any fiber type?
It is designed specifically to house 250µm coated optical fibers.
How many colors are available?
While this specific item is blue, the manufacturer produces 12 standard colors for easy identification.
Is this sold as a continuous length?
Yes, this product is sold per meter to accommodate specific project requirements.
