Overview

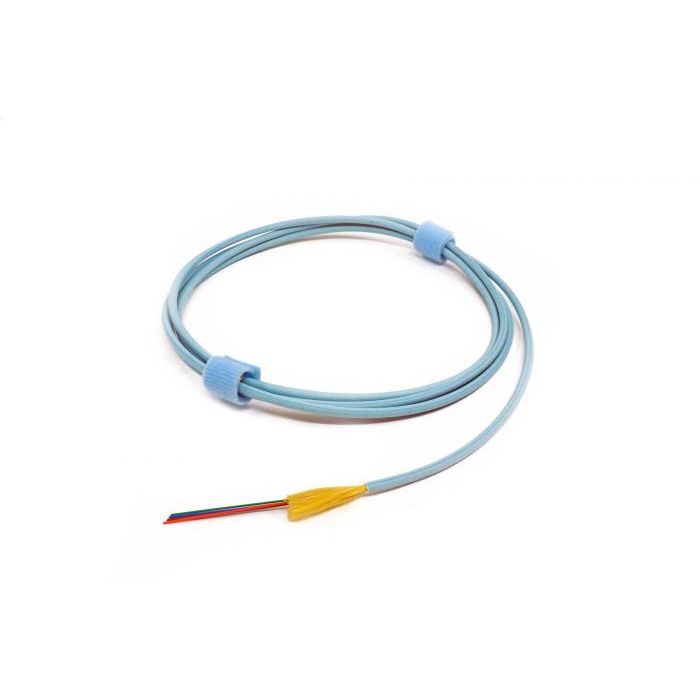

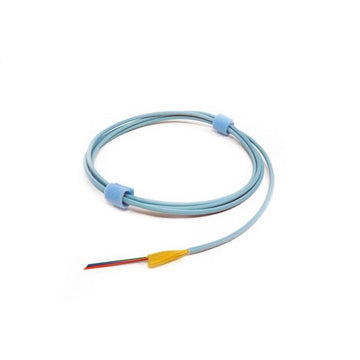

The TLC 12-Fiber Multimode Distribution Cable is designed for high-density indoor networking applications. Featuring 50/125um OM4 ClearCurve fiber, this cable provides optimized performance for high-speed data transmission within data centers and enterprise environments.
The cable utilizes 900um tight-buffered fibers, which simplify installation by allowing direct termination of connectors without the need for additional breakout kits. Its plenum-rated jacket ensures compliance with building fire codes for use in air-handling spaces. The distribution-style construction provides a compact and efficient solution for backbone and trunk cabling, offering excellent flexibility and ease of handling during deployment.
Key Features
-
Tight-Buffered Fiber Construction
Features 900um buffered fibers, enabling faster, more efficient direct connector termination without complex kits. -
OM4 ClearCurve Fiber
Utilizes high-bandwidth, laser-optimized multimode fiber suitable for 10G/40G/100G network applications. -
Plenum-Rated Jacket
Designed with flame-retardant materials for safe installation in plenum spaces, meeting stringent fire safety requirements. -
Compact Distribution Design
Optimizes cable density in conduits and pathways, saving valuable space in dense server racks. -
Easy Splicing Compatibility
Supports direct fusion splicing of pigtails to backbone trunks, simplifying integration into existing fiber systems. -
Standard 12-Fiber Count
Provides a reliable pathway for high-density voice, data, and video traffic.
Applications
- Data Center backbone cabling
- Enterprise network trunking
- High-density indoor premise distribution
- Building management systems
- Fiber-to-the-Workstation (FTTW)
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Distribution |
| Fiber Count | 12 |
| Fiber Mode | Multimode (OM4) |
| Core/Cladding | 50/125um |
| Jacket Rating | Plenum |
| Fiber Construction | 900um Tight-Buffered |
| Jacket Color | Aqua |
| Outer Diameter | 5.8mm |
Frequently Asked Questions
What does the 900um tight-buffered construction offer?
It allows for direct termination of connectors onto the fiber, eliminating the need for breakout kits and reducing installation time.
Is this cable suitable for installation in building air ducts?
Yes, the plenum-rated jacket is specifically designed to meet fire safety codes for installation in air-handling plenums.
Can this cable be used for fusion splicing?
Yes, the tight-buffered fibers can be easily fusion-spliced to pigtails or directly to backbone cable systems.
Is the OM4 fiber compatible with OM3 equipment?
Yes, OM4 is backward compatible with OM3 and OM2 multimode systems.
What is the primary application for this cable?
It is ideal for indoor backbone or horizontal distribution cabling in data centers and enterprise networks.
