Overview

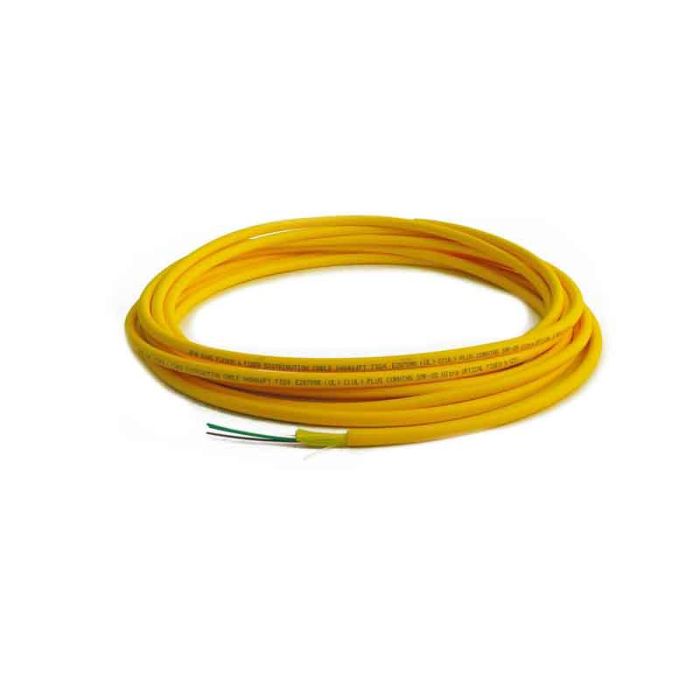

The TLC Distribution Cable is a high-performance fiber optic solution designed for indoor environments requiring plenum-rated cabling. Featuring 2 fibers with 50/125um OM3 Multimode ClearCurve glass, this cable is engineered to support high-speed data transmission in data centers and enterprise network infrastructures.
The distribution design incorporates 900um tight-buffered fibers, which facilitates faster and more efficient terminations. By eliminating the need for complex breakout kits, technicians can terminate connectors directly onto the fibers, significantly reducing installation time and labor costs. This cable is optimized for indoor building applications where fire safety compliance is required.
Key Features
-
900um Tight Buffered Fibers
Provides individual fiber protection and allows for direct termination, which simplifies connector installation. -
Plenum Rated Jacket
Ensures compliance with stringent building fire safety codes for installations in air-handling spaces. -
ClearCurve OM3 Multimode Fiber
Offers enhanced bend-insensitivity for reliable performance in tight cabling environments. -
Optimized Termination
Eliminates the need for costly breakout kits, reducing overall project labor time. -
Direct Splice Compatibility
Tight buffered construction allows pigtails to be easily fusion-spliced to backbone or trunk cables. -
Compact 4.4mm Outer Diameter
Provides a space-saving footprint in cable trays and conduits.
Applications
- Data Center Interconnects
- Enterprise LAN Backbone Cabling
- Indoor Plenum Spaces
- General Building Network Infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 2 |
| Fiber Type | Multimode 50/125um (OM3) |
| Fiber Category | ClearCurve |
| Jacket Rating | Plenum |
| Cable Diameter | 4.4mm |
| Buffer Size | 900um |
| Jacket Color | Aqua |
Frequently Asked Questions
Is this cable suitable for outdoor use?
No, this cable is designed for indoor use. Please consult a technician for outdoor-rated alternatives if exposure to moisture or UV is expected.
Does this cable require a breakout kit for termination?
No, the 900um tight buffered design allows for direct connector termination without a breakout kit.
Can I use this in plenum spaces?
Yes, this cable is plenum-rated, making it safe for use in air-handling environmental spaces.
What is the fiber type?
This is 50/125um OM3 Multimode fiber.
Is this cable armored?
This specific part number is the unarmored version.
