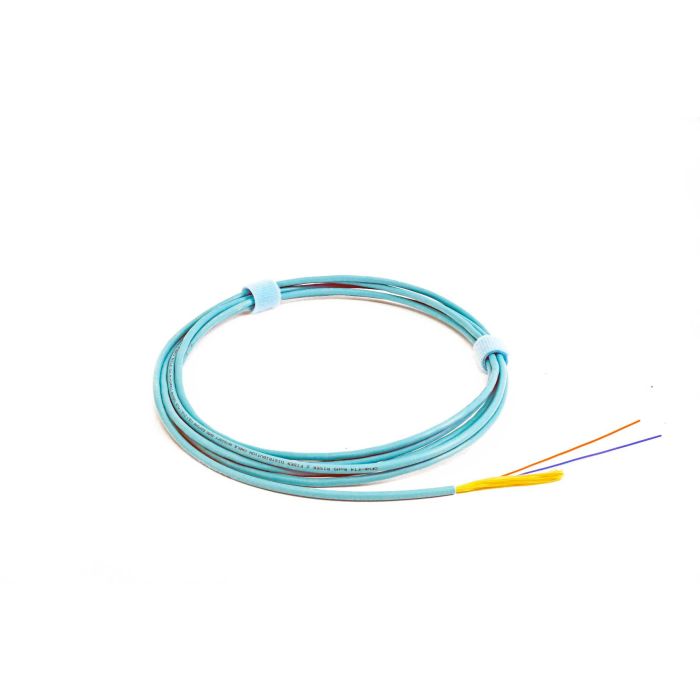

TLC Distribution Cable 2 Fiber Multimode 50/125um (OM3) ClearCurve Riser Aqua (per meter)

Overview

The TLC Distribution Cable is a 2-fiber multimode 50/125um (OM3) solution featuring high-performance ClearCurve glass. Designed for indoor environments, this riser-rated cable is engineered for high-density networking and backbone applications where space efficiency and reliable data transmission are critical.

This cable utilizes a distribution style architecture with 900um tight-buffered fibers, facilitating rapid, direct termination of connectors. The construction eliminates the requirement for additional breakout kits, which simplifies field installation and reduces overall labor time for technicians.

Key Features

• 900um Tight Buffered Fibers
  Features high-quality buffered fibers that allow for direct connector termination, saving time during assembly.
• ClearCurve Multimode Fiber
  Optimized OM3 50/125um glass provides exceptional resistance to bending losses, ensuring network integrity.
• Riser-Rated Jacket
  Constructed with a riser-rated outer sheath, making it suitable for vertical installations within building plenums or shafts.
• Aqua Jacket Color
  Industry-standard aqua coloring ensures quick identification of OM3 multimode cabling in crowded racks.
• Compact Distribution Design
  Small diameter profile allows for efficient cable management and space savings within data center conduits.
• Simple Termination Process
  Eliminates the need for complex breakout kits, streamlining the connection process for field technicians.

Applications

• Building backbones
• Data center inter-cabinet connectivity
• Local Area Network (LAN) installations
• Telecommunications closets

Technical Specifications

Frequently Asked Questions

What does OM3 mean for this cable?
OM3 refers to laser-optimized multimode fiber capable of supporting 10 Gigabit Ethernet speeds over longer distances compared to older OM1 or OM2 standards.

Do I need breakout kits for this cable?
No, because this is a tight-buffered distribution cable, connectors can be installed directly onto the 900um fibers.

Is this cable suitable for outdoor use?
No, this is a riser-rated cable intended for indoor use within walls or conduits.

Can this cable be fusion spliced?
Yes, the 900um fibers are compatible with standard fusion splicing techniques for connecting to backbone cabling.

What is the primary benefit of ClearCurve glass?
ClearCurve technology offers superior bend-insensitivity, which prevents signal loss if the cable is bent around tight corners during installation.
