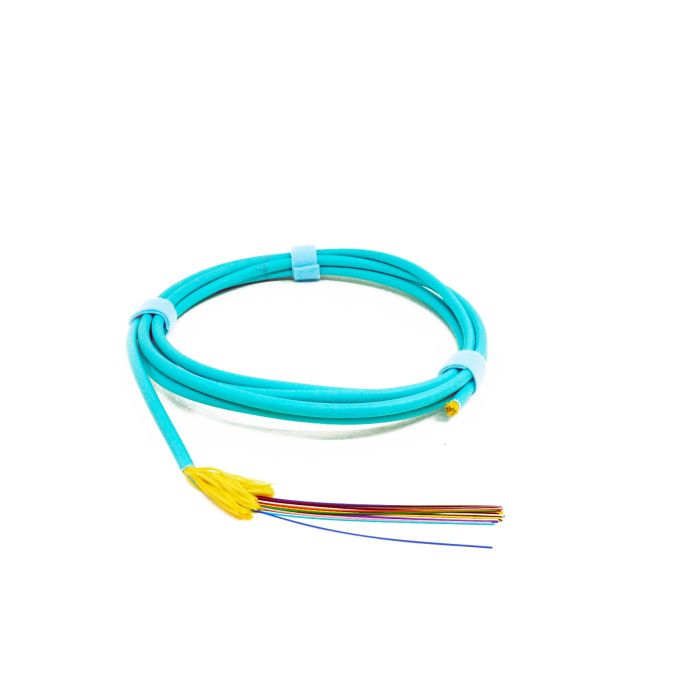

TLC Distribution Cable 24 Fiber Multimode 50/125um (OM3) ClearCurve Plenum Aqua (per meter)

Overview

This 24-fiber multimode distribution cable is designed for high-density indoor networking environments requiring high bandwidth and reliable performance. Featuring 50/125um (OM3) ClearCurve fiber, this cable is optimized for laser-based data center applications and high-speed enterprise backbones.

The cable construction utilizes 900um tight buffered fibers, which significantly simplify the termination process by eliminating the need for breakout kits. It is rated for plenum environments, making it suitable for installation in air-handling spaces. Its robust design supports direct connector termination or fusion splicing to backbone trunks, providing a versatile solution for structured cabling architectures.

Key Features

• 900um Tight Buffered Fibers
  Allows for faster, direct termination and reduces the need for additional breakout components.
• Plenum Rated Jacket
  Ensures compliance with stringent fire safety codes for use in plenums and air-handling spaces.
• OM3 Multimode Fiber
  Optimized for high-speed laser-based transmission in data centers and enterprise networks.
• ClearCurve Fiber Technology
  Provides improved macro-bend resistance for enhanced durability during installation and routing.
• High Fiber Density
  Supports 24 fibers in a compact design to maximize space efficiency within conduits and cable trays.
• Simplified Splicing
  Pigtails can be easily fusion spliced to existing backbone or trunk cables, streamlining network expansion.

Applications

• Data center backbone cabling
• Enterprise campus network backbones
• Premise wiring in plenum spaces
• High-speed local area networks (LANs)

Technical Specifications
