Overview

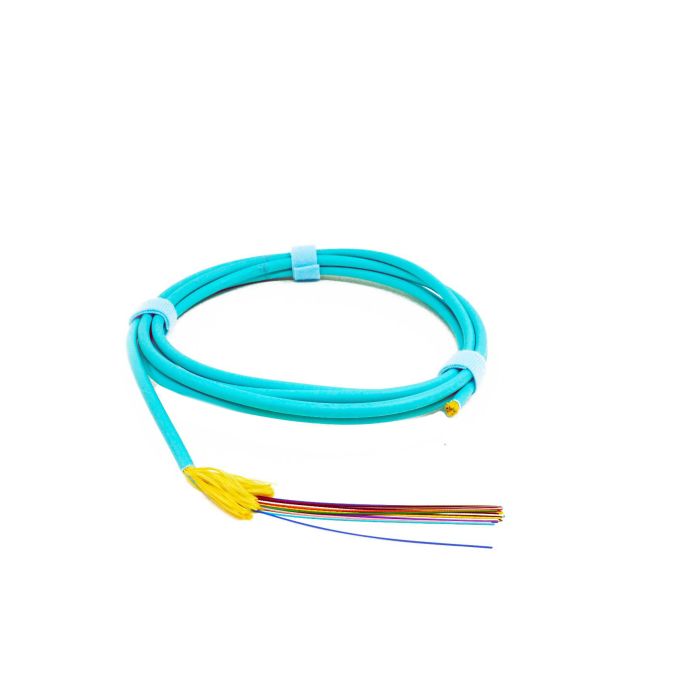

The TLC Distribution Cable is a high-performance fiber optic solution designed for efficient backbone and trunk installations. Featuring 24 optical fibers in a 50/125um OM3 multimode configuration, this cable utilizes ClearCurve bend-insensitive fiber technology for enhanced signal integrity in challenging routing environments.
Constructed with 900um tight-buffered fibers, the cable allows for direct connector termination without the need for additional breakout kits, significantly reducing installation time and complexity. This distribution-style cable is engineered for riser-rated indoor applications, providing a reliable and streamlined path for high-density data network backbones.
Key Features
-
ClearCurve Bend-Insensitive Fiber
Maintains signal performance even when subjected to tight bends or challenging cable routing. -
900um Tight Buffered Design
Enables direct termination of connectors, eliminating the requirement for complex breakout kits. -
Fusion Splicing Compatibility
Pigtails can be easily fusion spliced to backbone or trunk cabling for secure connections. -
Subunit Grouping
Fiber counts are organized into subunits of 12 for structured cable management and identification. -
Riser-Rated Jacket
Qualified for vertical pathway installations in accordance with safety standards for building environments. -
Optimized for 10G Applications
OM3 multimode fiber supports high-bandwidth data transmission requirements in enterprise networks.
Applications
- Data center backbones
- Enterprise building distribution
- Intra-building network trunks
- High-density fiber optic management
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 24 |
| Fiber Type | Multimode 50/125um (OM3) |
| Fiber Technology | ClearCurve |
| Buffer Type | 900um Tight Buffered |
| Rating | Riser |
| Jacket Color | Aqua |
| Outside Diameter | 7.8mm |
Frequently Asked Questions
What does the 900um tight buffered construction offer?
It allows for faster, easier terminations by enabling connectors to be installed directly onto the fibers without needing breakout kits.
Is this cable suitable for riser applications?
Yes, this cable features a riser-rated jacket suitable for vertical installations within buildings.
How are the fibers organized in this cable?
The 24 fibers are organized into subunits of 12 fibers each for improved organization.
Does this cable support 10G speeds?
Yes, as an OM3 multimode fiber, it is optimized for high-speed data applications.
Can this cable be fusion spliced?
Yes, the tight-buffered fibers allow pigtails to be easily fusion spliced to the backbone.
