Overview

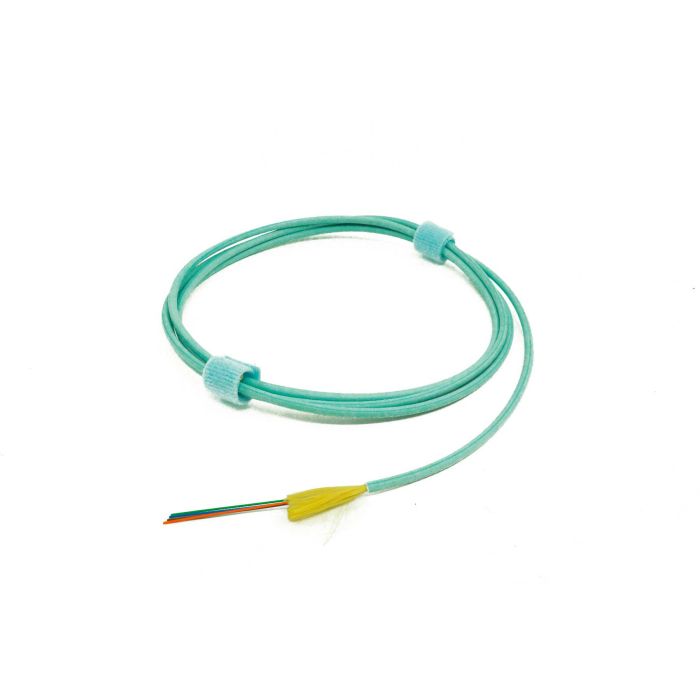

The TLC 4-Fiber Multimode Distribution Cable is designed for reliable indoor high-speed data transmission. Utilizing 50/125um OM3 ClearCurve multimode fiber, this cable is optimized for high-bandwidth applications in data centers, enterprise networks, and campus backbones where space and efficiency are critical.
This cable features a plenum-rated jacket, making it suitable for installation in air handling spaces. The construction incorporates 900um tight-buffered fibers, which facilitates faster, more direct termination compared to loose-tube designs, allowing for quick deployment of connectivity components without the need for additional breakout kits.
Key Features
-
900um Tight-Buffered Fibers
Enables direct connector termination, simplifying installation and reducing labor time. -
Plenum-Rated Jacket
Meets stringent fire safety requirements for use in air handling plenums. -
ClearCurve Multimode Fiber
Provides superior macro-bend performance for compact routing and high reliability. -
4-Fiber Configuration
Provides essential capacity for high-speed link requirements. -
Aqua Jacket Color
Industry-standard color coding for easy identification of OM3 fiber types. -
Distribution-Style Construction
Optimized for tight spaces in indoor environments.
Applications
- Data Center backbone cabling
- Enterprise LAN networks
- Indoor cable routing
- High-speed data transmission links
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | TLC |
| Fiber Count | 4 |
| Fiber Type | Multimode 50/125um (OM3) |
| Fiber Construction | 900um Tight Buffered |
| Jacket Rating | Plenum |
| Fiber Technology | ClearCurve |
| Jacket Color | Aqua |
Frequently Asked Questions
What does the plenum rating mean?
Plenum rating indicates that the cable jacket is constructed of materials that produce minimal smoke and low flame spread, allowing it to be safely installed in ceiling and floor air-handling spaces.
Can I terminate connectors directly onto this cable?
Yes, the 900um tight-buffered fiber construction allows for direct termination of connectors without requiring breakout kits.
Is this cable suitable for outdoor use?
No, this is a plenum-rated distribution cable intended for indoor environments only.
What is the fiber type?
This cable uses OM3 50/125um multimode fiber, which is optimized for 10Gbps applications.
How are the fibers protected?
The fibers are protected by a 900um tight buffer, which provides structural integrity and ease of handling during the termination process.
