Overview

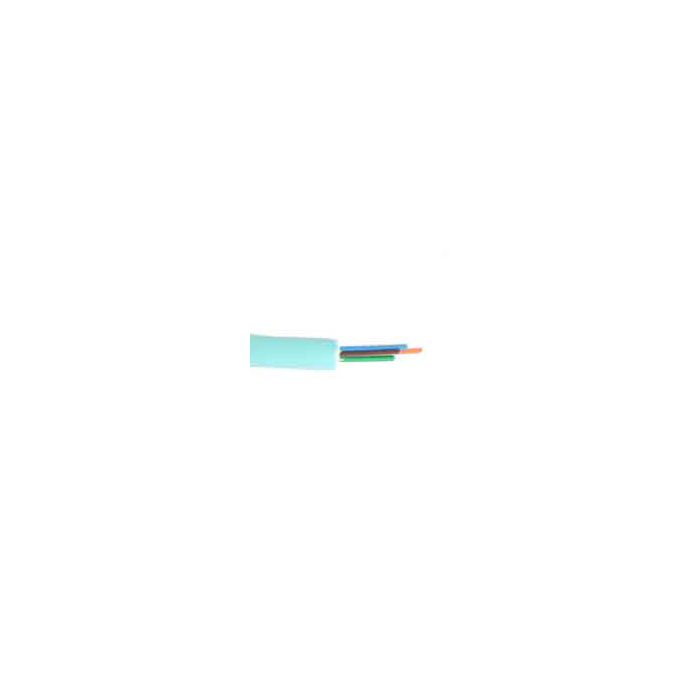

This TLC distribution cable is designed for high-performance indoor networking applications. Featuring 4 fibers of 50/125um OM3 laser-optimized multimode fiber with ClearCurve bend-insensitive technology, this cable ensures reliable data transmission in compact environments. The riser-rated jacket allows for safe installation in vertical spaces between floors.
The cable utilizes a distribution style construction with 900um tight-buffered fibers. This design facilitates efficient field termination, as connectors can be applied directly to the tight-buffered fibers without the need for additional breakout kits. It is an ideal solution for backbone and trunk cabling in data centers and enterprise LAN environments.
Key Features
-
ClearCurve Fiber Technology
Features bend-insensitive multimode fiber for increased durability and signal integrity in tight spaces. -
900um Tight Buffer
Allows for direct connector termination, eliminating the need for complex breakout kits. -
Riser-Rated Jacket
Compliant with safety standards for vertical installation pathways within buildings. -
Aqua Jacket Color
Provides clear identification for OM3 multimode fiber installations per industry standards. -
Compact Distribution Design
Efficient cabling footprint suitable for high-density environments. -
Direct Splicing Compatibility
Pigtails can be fusion spliced directly to the backbone cable for streamlined infrastructure builds.
Applications
- Data Center Backbone Cabling
- Enterprise LAN Trunking
- Indoor Building Vertical Riser Pathways
- High-Density Fiber Distribution
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Distribution |
| Fiber Count | 4 |
| Fiber Mode | Multimode (OM3) |
| Core/Cladding Size | 50/125um |
| Buffer Size | 900um Tight Buffered |
| Jacket Rating | Riser |
| Jacket Color | Aqua |
| Special Technology | ClearCurve (Bend-Insensitive) |
Frequently Asked Questions
What is the benefit of a tight-buffered fiber design?
Tight-buffered fibers allow for direct connector termination and fusion splicing, which speeds up installation times by removing the need for extra breakout hardware.
Is this cable suitable for outdoor use?
No, this cable features a riser-rated jacket intended for indoor vertical installations. It is not rated for external or outdoor environments.
Can this cable be used for 10GbE networking?
Yes, the OM3 50/125um fiber is specifically designed to support 10 Gigabit Ethernet applications.
What does the 'ClearCurve' designation mean?
ClearCurve is a brand of bend-insensitive fiber that maintains signal integrity even when the cable is tightly coiled or bent during installation.
Are there other fiber counts available?
Yes, these cables are manufactured in fiber counts ranging from 2 to 144 fibers.
