Overview

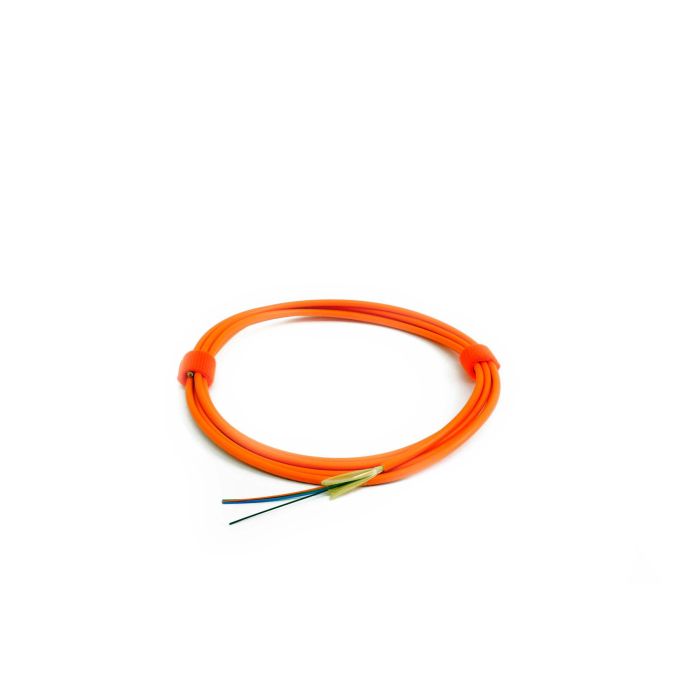

The TLC Distribution Cable is a 4-fiber multimode 62.5/125um optical cable featuring Infinicor 301 fiber. Designed for high-density environments, this cable utilizes a plenum-rated jacket, making it suitable for installations in air handling spaces. Its distribution-style construction supports efficient cable management and reliable network connectivity.
The cable features 900um tight-buffered fibers, which facilitate faster and easier termination compared to loose tube designs. Connectors can be terminated directly onto the tight-buffered fibers, and pigtails can be fusion-spliced to backbone or trunk cables, providing versatility for various networking architectures.
Key Features
-
900um Tight Buffered Fibers
Protects individual fibers and enables direct termination for faster deployment. -
Plenum Rated Jacket
Constructed to meet fire safety standards for use in plenums and other air-handling spaces. -
Direct Termination Compatibility
Allows for connectors to be applied directly to the fiber, reducing the need for breakout kits. -
Multimode 62.5/125um Fiber
Supports standard multimode networking applications with reliable signal transmission. -
Optimized Design
Distribution style allows for easier pigtail fusion splicing to backbone cabling. -
Flexible Deployment
Suitable for a variety of indoor environments including data centers and enterprise networks.
Applications
- Data center backbones
- Enterprise network infrastructure
- Internal fiber routing in air-handling spaces
- Direct-to-connector termination builds
- Fusion splicing applications
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 4 |
| Fiber Type | Multimode 62.5/125um |
| Fiber Specification | Infinicor 301 |
| Buffer Size | 900um Tight Buffered |
| Jacket Rating | Plenum |
| Jacket Color | Orange |
Frequently Asked Questions
Is this cable suitable for outdoor use?
No, this cable is designed for indoor plenum environments.
What is the buffer size of the fibers?
The fibers are 900um tight buffered.
Can I terminate connectors directly onto this cable?
Yes, the tight-buffered design allows for direct connector termination without requiring breakout kits.
What is the fiber count?
This specific cable configuration features 4 fibers.
Is this an armored cable?
This model is the non-armored version of the distribution cable.
