Overview

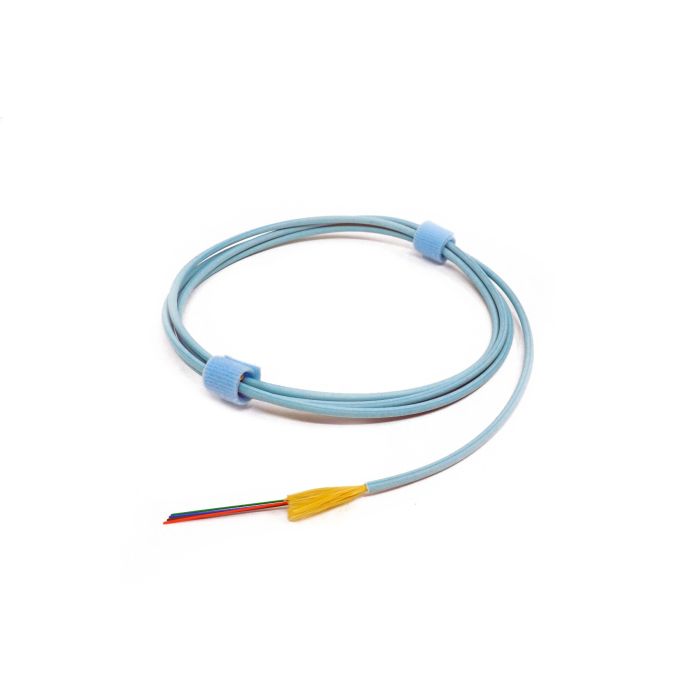

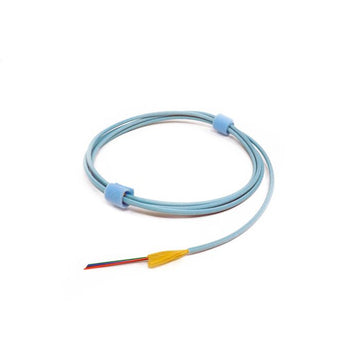

The TLC Distribution Cable is a high-performance fiber optic solution designed for indoor environments requiring reliable data transmission. Featuring 6 fibers of 50/125um OM3 multimode glass, this cable is engineered with ClearCurve technology to provide enhanced bend insensitivity, making it ideal for tight routing in data centers and enterprise networks.
This cable features 900um tight-buffered fibers, which facilitate faster and more efficient field terminations. Because the individual fibers are protected, they can be terminated directly with connectors or fusion-spliced to backbone cabling without the need for additional breakout kits, simplifying installation and reducing labor time. The plenum-rated jacket allows for safe installation in air-handling spaces.
Key Features
-
ClearCurve Bend-Insensitive Fiber
Optimized for challenging installation environments with enhanced macro-bend performance. -
900um Tight-Buffered Construction
Enables direct termination of connectors for faster installation. -
Plenum Rated Jacket
Suitable for installation in plenums, ducts, and other air-handling spaces without additional conduit. -
6-Fiber Configuration
Provides sufficient core density for local area network (LAN) backbone or horizontal cabling. -
OM3 Multimode Performance
Supports 10 Gigabit Ethernet applications for high-speed data transmission. -
Field Termination Ready
Simplifies the process of connecting to patch panels or active equipment.
Applications
- Data Center backbone cabling
- Enterprise network horizontal distribution
- Building management systems
- Plenum-rated indoor fiber distribution
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 6 |
| Fiber Type | Multimode 50/125um (OM3) |
| Fiber Technology | ClearCurve |
| Jacket Rating | Plenum |
| Buffer Size | 900um Tight Buffered |
| Jacket Color | Aqua |
Frequently Asked Questions
What does the plenum rating mean?
Plenum rating indicates that the cable jacket meets specific fire safety standards, allowing it to be installed in environmental air-handling spaces like drop ceilings and raised floors.
Can I terminate connectors directly to this cable?
Yes, the 900um tight-buffered construction is designed for direct connector termination without requiring breakout kits.
Is this cable suitable for 10GbE?
Yes, as an OM3 multimode fiber, it is optimized for 10 Gigabit Ethernet applications.
What is ClearCurve technology?
ClearCurve is a bend-insensitive fiber design that maintains signal integrity even when the cable is tightly routed or bent.
How is this cable sold?
This cable is sold by the meter.
