Overview

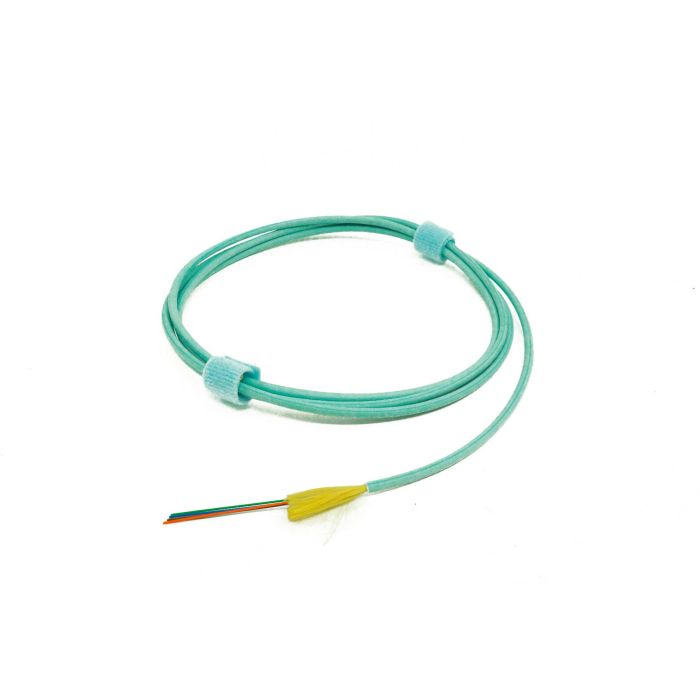

The TLC Distribution Cable is a high-performance 6-fiber multimode cable engineered for reliable data transmission in indoor environments. Featuring OM3 50/125um fiber with ClearCurve bend-insensitive technology, this cable is designed for use in Riser-rated applications, ensuring optimal performance in vertical cable runs.
This distribution-style cable utilizes 900um tight-buffered fibers, which facilitates faster and more efficient terminations. By allowing direct connector termination or pigtail fusion splicing, it reduces installation time and minimizes the need for breakout kits in network deployments.
Key Features
-
900um Tight Buffered Fibers
Enables faster and easier field termination without the need for additional breakout kits. -
ClearCurve Multimode Fiber
Provides superior bend-insensitivity for reliable performance in tight spaces and challenging installation routes. -
OM3 Laser-Optimized Performance
Supports high-speed 10Gbps data transmission over extended distances. -
Riser-Rated Jacket
Designed for safe installation in vertical shafts and non-plenum areas. -
6-Fiber Configuration
Provides a compact, high-density solution for backbone or trunk cabling requirements. -
Tight-Buffered Design
Eliminates the complexity of loose-tube constructions for improved termination speed.
Applications
- Data center backbone cabling
- Enterprise network infrastructure
- Building vertical riser pathways
- High-speed local area networks (LAN)
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 6 |
| Fiber Type | Multimode (OM3) |
| Fiber Diameter | 50/125um |
| Fiber Construction | 900um Tight Buffered |
| Jacket Rating | Riser |
| Jacket Color | Aqua |
| Technology | ClearCurve |
Frequently Asked Questions
What is the primary benefit of the 900um tight-buffered fiber?
It allows for direct termination of connectors and easy fusion splicing without requiring additional breakout kits, significantly speeding up installation.
Can this cable be used in plenum spaces?
No, this specific model is rated for Riser applications. Please consult local fire codes for installation requirements.
Is this cable suitable for 10Gbps networks?
Yes, as an OM3 50/125um fiber, it is optimized for 10Gbps data transmission.
What is the jacket color?
The cable jacket is Aqua, which is the industry standard for OM3 multimode fiber.
Does this cable include armor?
This model is the standard distribution version without aluminum interlocking armor.
