Overview

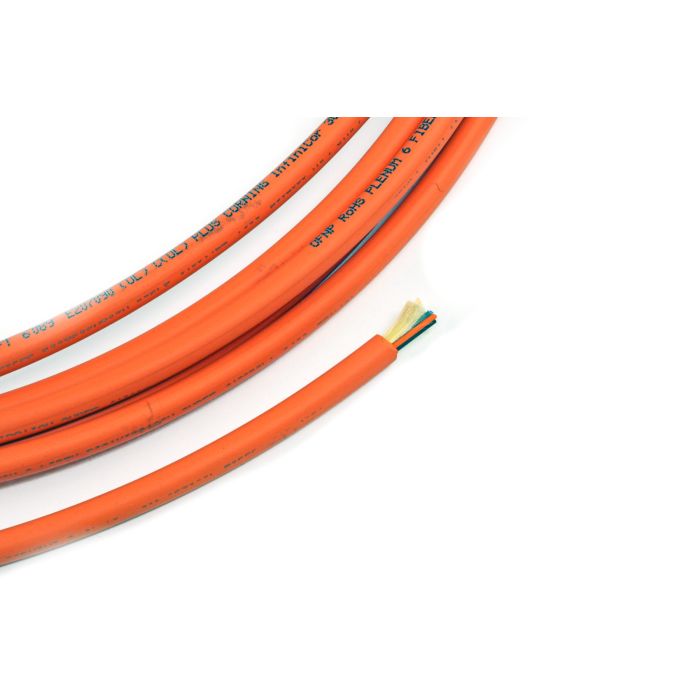

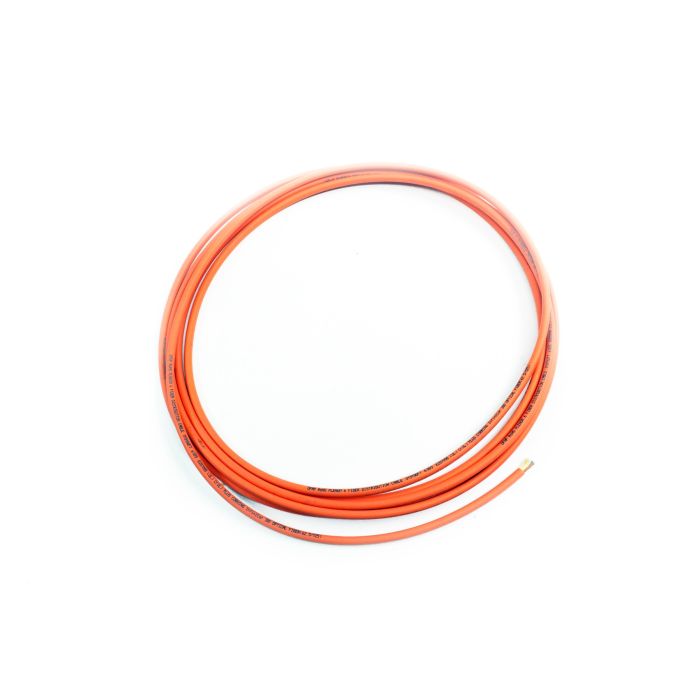

The TLC Distribution Cable is a 6-fiber multimode cable utilizing 62.5/125um Infinicor303 fiber. Designed for indoor applications, this cable features a plenum-rated jacket, making it suitable for installation in air-handling spaces where building codes require strict fire safety standards.
This distribution-style cable features 900um tight-buffered fibers, which simplify field termination by allowing for direct connectorization without the need for additional breakout kits. It is also compatible with direct fusion splicing to backbone or trunk cabling, providing a versatile solution for high-density local area network environments.
Key Features
-
900um Tight Buffered Fibers
Allows for faster and more efficient field terminations directly onto the fiber. -
Plenum-Rated Jacket
Ensures compliance with safety codes for installation in plenum air-handling spaces. -
6-Fiber Configuration
Provides sufficient channel capacity for standard indoor network links. -
Direct Termination Compatibility
Eliminates the requirement for breakout kits, reducing assembly time. -
Fusion Splicing Ready
Tight-buffered construction supports standard fusion splicing methods for trunk integration. -
Multimode 62.5/125um Fiber
Optimized for short-to-medium reach optical data transmissions.
Applications
- Indoor backbone cabling
- Building distribution systems
- Local Area Networks (LAN)
- Data center sub-floor and ceiling runs
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Distribution |
| Fiber Count | 6 |
| Fiber Mode | Multimode |
| Fiber Core/Cladding | 62.5/125um |
| Jacket Rating | Plenum |
| Fiber Construction | 900um Tight Buffered |
| Jacket Color | Orange |
Frequently Asked Questions
Can this cable be installed in air-handling ceilings?
Yes, the cable is plenum-rated, which makes it suitable for use in plenum spaces according to standard building fire safety requirements.
Do I need a breakout kit to terminate this cable?
No, because this is a tight-buffered distribution cable, connectors can be terminated directly onto the 900um fibers.
Can I fusion splice this cable?
Yes, the tight-buffered fibers can be easily fusion-spliced to pigtails or backbone cabling.
What is the fiber type?
This cable uses 62.5/125um multimode fiber, specifically Infinicor303.
Is the fiber count fixed at 6 fibers?
This specific SKU contains 6 fibers; however, the manufacturer offers similar cables in counts ranging from 2 to 144.
