Overview

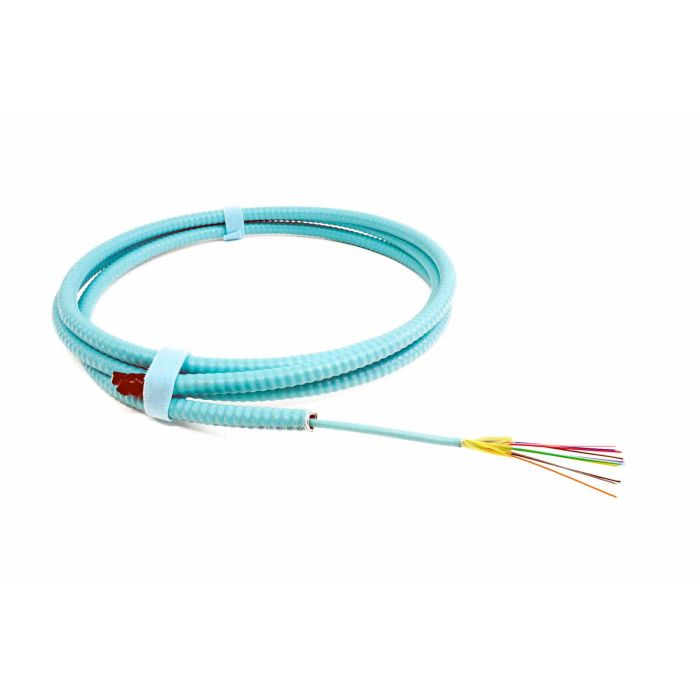

The TLC Distribution Cable is a robust indoor/outdoor fiber optic cable designed for high-density networking environments. Featuring 12 ClearCurve multimode 50/125um OM3 fibers, this cable is engineered for high performance in data centers and backbone cabling applications where physical protection is paramount.
This cable utilizes a distribution-style construction with 900um tight-buffered fibers, which allows for direct termination of connectors without the need for additional breakout kits, saving valuable installation time. The inclusion of Aluminum Interlocking Armor (AIA) provides superior crush resistance and physical protection against rodents or impact in exposed environments, while the Plenum-rated jacket ensures compliance with stringent building fire safety codes.
Key Features
-
12 Fiber Count
Contains 12 individual 50/125um OM3 multimode fibers for high-bandwidth data transmission. -
ClearCurve Multimode Fiber
Bend-insensitive technology minimizes signal loss in tight routing conditions. -
Aluminum Interlocking Armor
Provides a high level of physical protection and crush resistance in exposed routing areas. -
Plenum Rated Jacket
Meets building safety requirements for installation in air-handling spaces. -
900um Tight Buffered Fibers
Facilitates quick and easy field terminations directly onto the fiber. -
Direct Connector Termination
Eliminates the need for costly and time-consuming breakout kits.
Applications
- Data center backbone cabling
- Indoor/outdoor premise distribution
- Building backbone and riser applications
- High-traffic areas requiring enhanced physical protection
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Multimode 50/125um (OM3) |
| Fiber Technology | ClearCurve |
| Cable Type | Distribution |
| Armor | Aluminum Interlocking Armor (AIA) |
| Jacket Rating | Plenum |
| Buffered Fiber Diameter | 900um |
Frequently Asked Questions
Does this cable require breakout kits?
No, the 900um tight buffered design allows for direct termination of connectors.
Is this cable suitable for outdoor use?
It is designed as an indoor/outdoor distribution cable, suitable for environments where physical protection via armor is necessary.
Can I splice pigtails to this cable?
Yes, the internal fibers are compatible with standard fusion splicing to backbone or trunk cables.
What is the fiber count?
This specific model contains 12 fibers.
What is the primary benefit of the armor?
The Aluminum Interlocking Armor provides superior crush resistance and physical protection against accidental damage.
