Overview

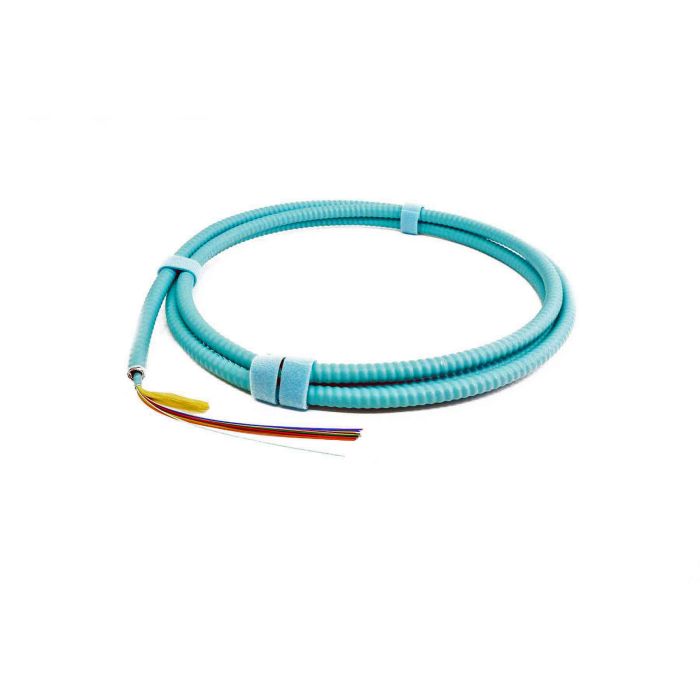

The TLC Distribution Cable is a robust fiber optic solution designed for high-density networking environments requiring both performance and mechanical protection. Featuring 12 ClearCurve multimode 50/125um OM4 fibers, this cable is engineered for high-bandwidth applications in data centers and enterprise networks.
Constructed with 900um tight-buffered fibers, the cable allows for efficient field termination, eliminating the need for breakout kits. The inclusion of aluminum interlocking armor provides significant crush resistance, making it suitable for deployment in demanding indoor environments where additional physical protection is required for sensitive optical pathways. It is rated for plenum installations, ensuring compliance with fire safety codes.
Key Features
-
12-Fiber Configuration
Provides high-density signal transmission within a compact diameter. -
50/125um OM4 Fiber
Optimized for 10 Gigabit Ethernet and higher speed network protocols. -
ClearCurve Technology
Engineered to withstand tight bends and cable management stress with minimal signal loss. -
Aluminum Interlocking Armor
Adds a layer of metallic protection against crush and impact forces. -
Plenum Rated Jacket
Meets stringent fire safety standards for use in plenum air-handling spaces. -
900um Tight Buffered Design
Simplifies the termination process by allowing direct connector installation.
Applications
- Data center backbones
- Enterprise local area networks (LANs)
- High-density fiber distribution
- Plenum-rated indoor infrastructure
- High-security installations requiring armored protection
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Fiber Type | Multimode 50/125um OM4 |
| Jacket Rating | Plenum |
| Armor Type | Aluminum Interlocking Armor |
| Fiber Construction | 900um Tight Buffered |
Frequently Asked Questions
Can I install connectors directly onto this cable?
Yes, the 900um tight buffered fiber design allows for direct termination of connectors.
Is this cable suitable for outdoor use?
No, this cable is designed for indoor, plenum-rated applications.
What is the primary benefit of the interlocking armor?
The armor provides superior crush resistance, protecting the internal fibers from external mechanical damage.
Does this cable support 10Gbps?
Yes, as an OM4 fiber cable, it is optimized for high-speed 10GbE network environments.
Are there other fiber counts available?
This cable can be provided with fiber counts ranging from 2 to 144 fibers.
