Overview

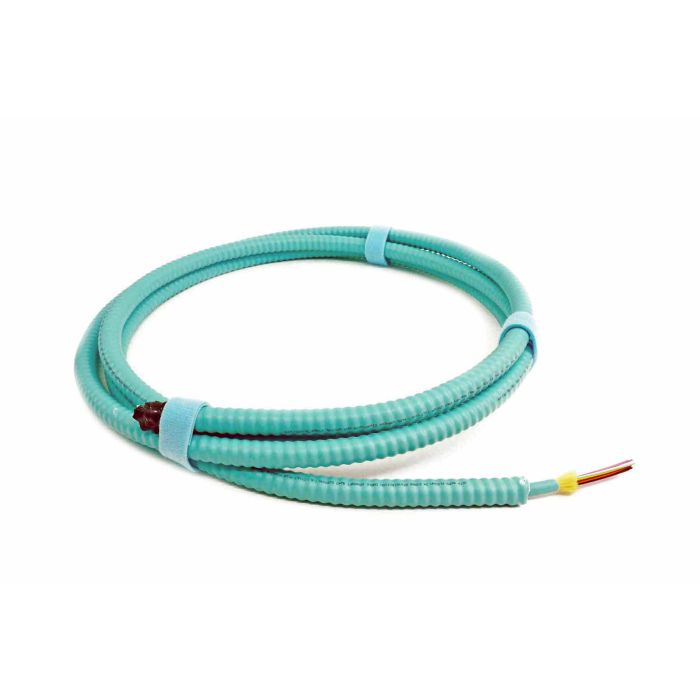

The TLC Distribution Cable with Aluminum Interlocking Armor is a robust, high-performance fiber optic solution designed for demanding indoor environments. Featuring 24 fibers of high-quality 50/125um OM3 ClearCurve multimode glass, this cable is engineered for high-speed data transmission and reliable network performance.
Constructed with 900um tight-buffered fibers, this cable simplifies installation by allowing direct termination of connectors or easy fusion splicing to backbone cabling, eliminating the need for breakout kits. The inclusion of aluminum interlocking armor provides significant crush resistance and physical protection, while the plenum-rated jacket ensures compliance with stringent fire safety building codes.
Key Features
-
24-Fiber Construction
Features high-density fiber capacity to support large-scale network deployments. -
Aluminum Interlocking Armor
Provides enhanced mechanical protection against crushing and impact for ruggedized indoor installations. -
Plenum Rated Jacket
Designed for use in air-handling spaces to meet fire safety and building code requirements. -
900um Tight Buffered Fibers
Allows for direct connector termination and simplified splicing without the need for additional breakout hardware. -
OM3 Multimode Fiber
Supports high-bandwidth 10 Gigabit Ethernet applications over extended distances. -
ClearCurve Compatibility
Engineered with bend-insensitive fiber technology for increased installation flexibility in confined spaces.
Applications
- Indoor backbone cabling
- High-speed data center interconnections
- Plenum ceiling and raised floor installations
- Enterprise network distribution
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 24 |
| Fiber Type | Multimode (50/125um) |
| Fiber Grade | OM3 (ClearCurve) |
| Cable Type | Distribution |
| Armor Type | Aluminum Interlocking Armor |
| Jacket Rating | Plenum |
| Outside Diameter | 16.6mm |
| Buffer Size | 900um Tight Buffered |
| Color | Aqua |
Frequently Asked Questions
Can I install this cable in plenum spaces?
Yes, this cable features a plenum-rated jacket, making it suitable for use in building air-handling spaces.
Does this cable require breakout kits for termination?
No, the 900um tight buffered fiber design allows for direct connector termination and fusion splicing without breakout kits.
What is the purpose of the interlocking armor?
The aluminum interlocking armor provides robust mechanical protection against crushing, bending, and physical damage in indoor environments.
What is the fiber grade?
This cable uses OM3 ClearCurve multimode fiber, optimized for high-speed 10GbE networking.
Is the unit of measurement per meter?
Yes, this product is sold by the meter.
