Overview

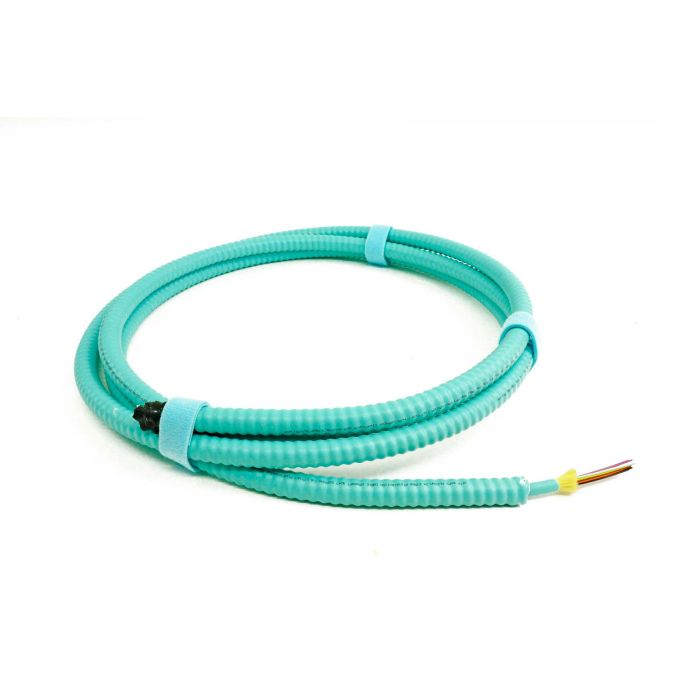

The TLC Distribution Cable is a robust indoor/outdoor fiber optic solution featuring 24-count 50/125um OM4 ClearCurve multimode fibers. This cable is engineered for high-density applications, utilizing 900um tight buffered fibers to facilitate faster termination and simplified installation without the need for additional breakout kits.
Designed for environments requiring mechanical protection, this cable includes aluminum interlocking armor, which provides crush resistance and durability. The plenum-rated jacket allows for installation in air-handling spaces, meeting stringent safety standards for fire resistance in building infrastructures.
Key Features
-
900um Tight Buffer
Features tight-buffered construction that allows for direct connector termination, saving time and labor. -
Aluminum Interlocking Armor
Provides physical protection against crush forces and impacts in harsh indoor environments. -
Plenum Rated Jacket
Meets building code requirements for safety in air-handling plenums. -
ClearCurve Multimode Fiber
Utilizes advanced bend-insensitive fiber technology for improved performance in tight spaces. -
24-Fiber Capacity
High-density fiber count optimized for backbone and trunk cabling requirements. -
No Breakout Kits Required
Simplified design reduces installation complexity and component costs.
Applications
- Data Center backbone cabling
- Enterprise LAN/WAN installations
- Plenum spaces in building infrastructures
- Indoor/outdoor campus environments
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | M50DI24C4NPA78AIA2 |
| Fiber Count | 24 |
| Fiber Type | Multimode (OM4) |
| Core/Cladding | 50/125um |
| Fiber Technology | ClearCurve |
| Jacket Rating | Plenum |
| Armor | Aluminum Interlocking |
| Buffer Type | 900um Tight Buffer |
Frequently Asked Questions
Is this cable suitable for outdoor use?
This cable is designed for indoor/outdoor versatility; however, please consult your specific installation environment for moisture-sealing requirements.
Does this cable require a breakout kit?
No, the 900um tight buffered fiber construction allows for direct connector termination.
What does the armor provide?
The aluminum interlocking armor provides enhanced crush protection and physical security for the internal fibers.
Can I fusion splice this cable?
Yes, the fibers can be directly fusion-spliced to pigtails or backbone cabling.
Is this an OM4 cable?
Yes, it is a 50/125um OM4 ClearCurve multimode cable.
